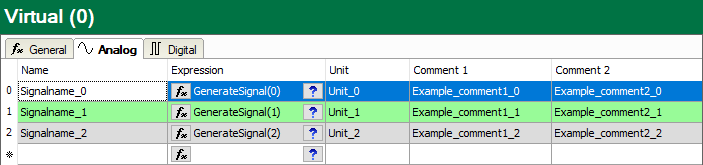

The following explains the setup of the data format "JSON (grouped)" using an example with three signals. The signals are defined as follows:

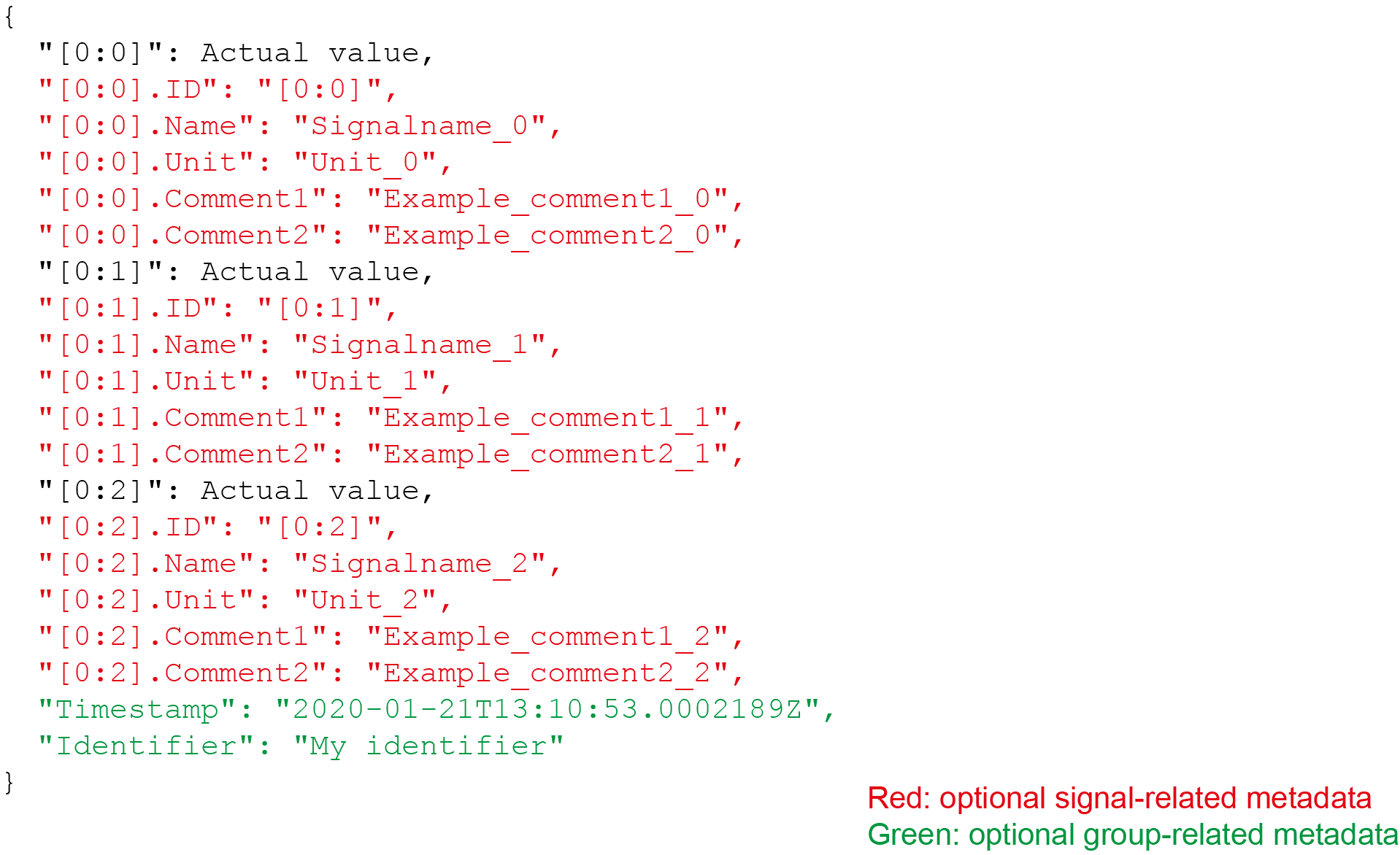

JSON example for signal ID as a signal reference
Note |
|
|---|---|
 |
Please note that these are examples created using a specific version. The order of the keys may change and differ from this example. Therefore, use standard JSON methods to determine the values based on the key definitions. |

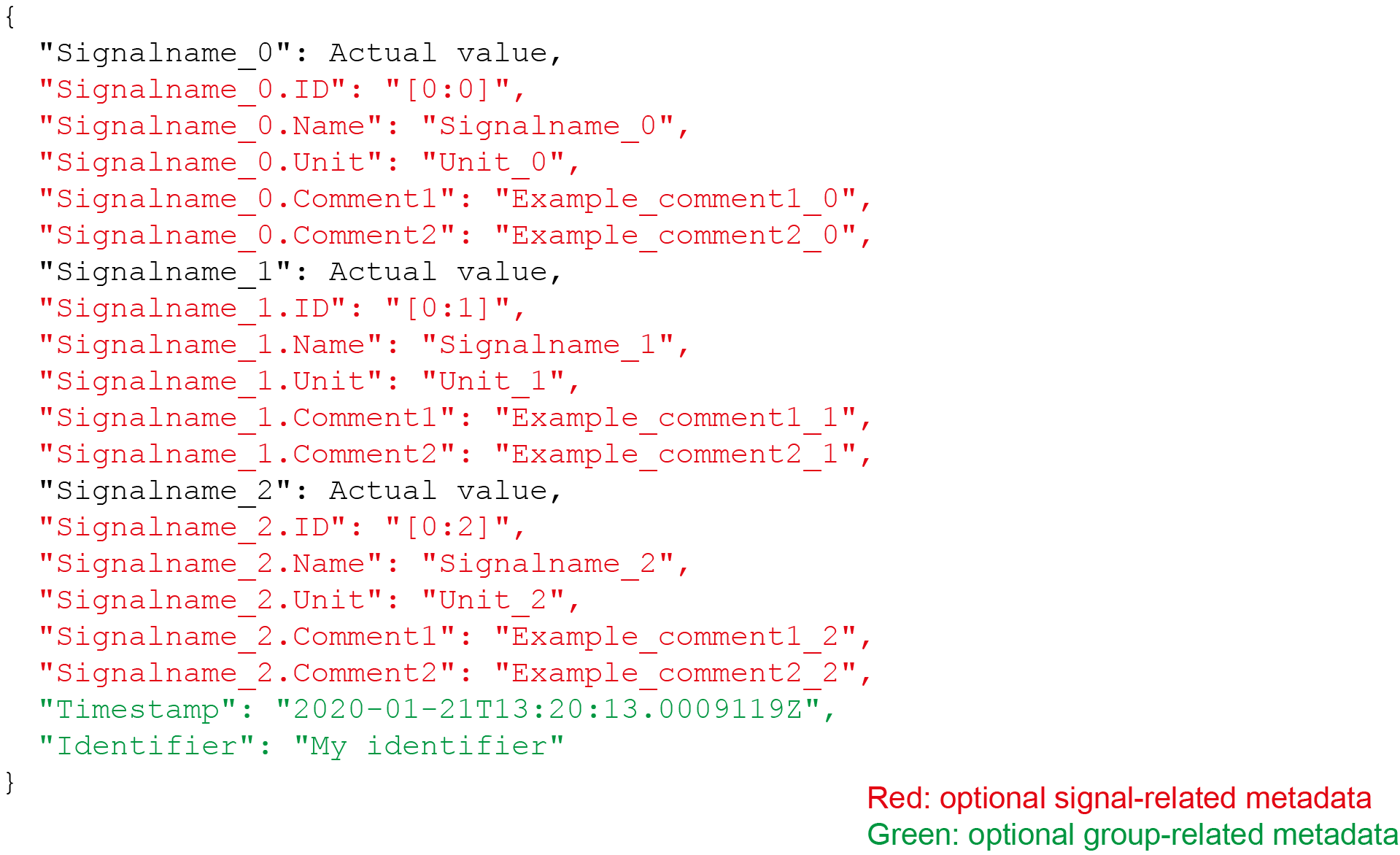

JSON example for signal name as a signal reference
