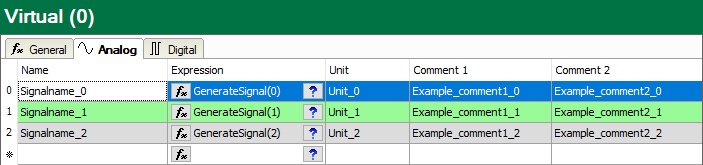

The following explains the setup of the data format “JSON (per signal)” using an example with three signals. The signals are defined as follows:

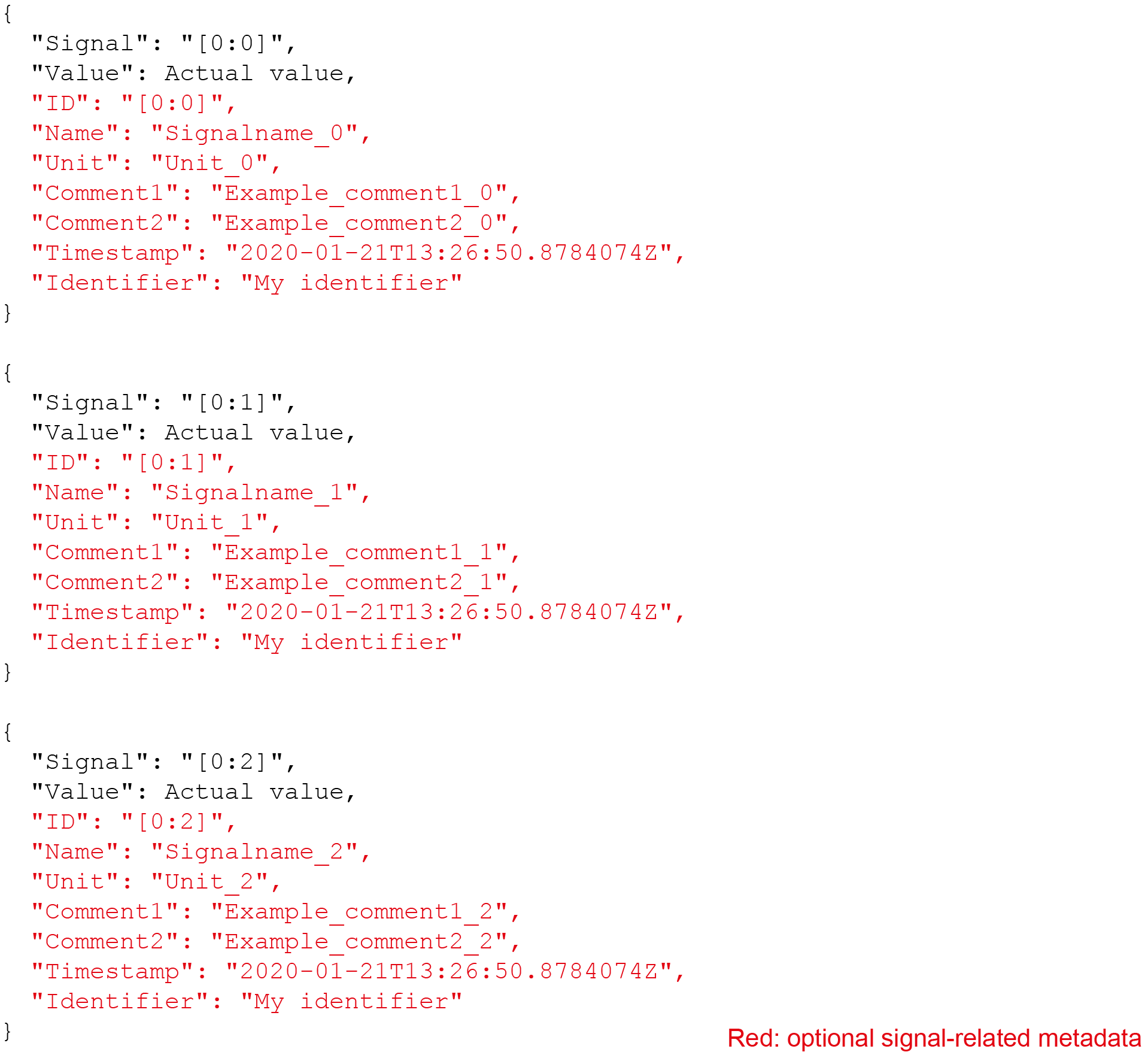

JSON example for signal ID as a signal reference

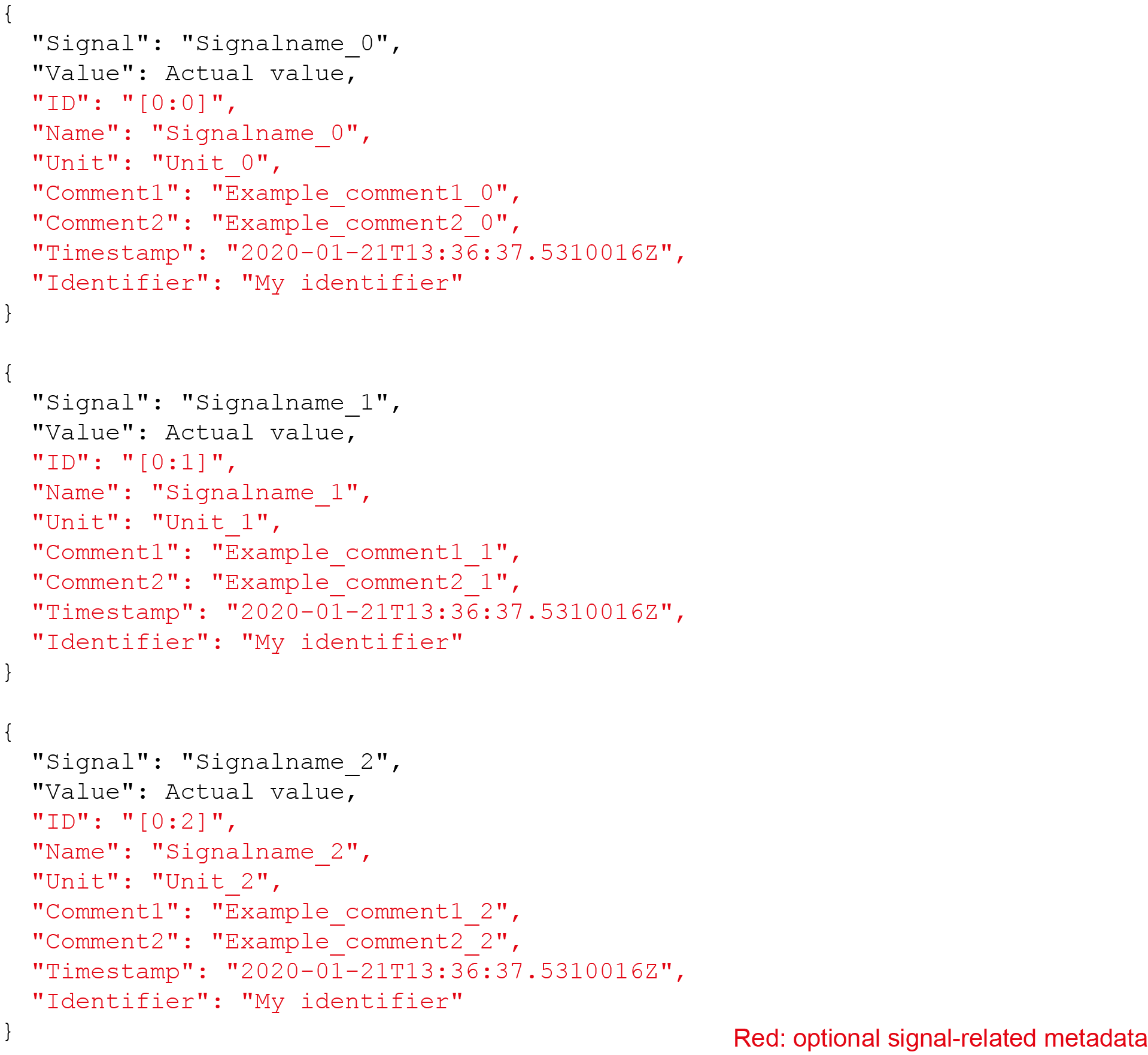

JSON example for signal name as a signal reference
