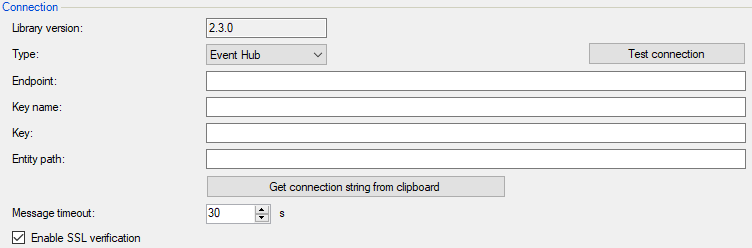

The following settings are required for the Event Hub type:

Endpoint, Key name, Key, Entity path

The corresponding parts of a connection string from the properties of the Event Hub in the Microsoft Azure Portal are inserted into these fields. You can use the button below to fill in the fields automatically.

<Get connection string from clipboard>

If you have copied a connection string from the properties of the Event Hub in the Microsoft Azure Portal to the clipboard, you can paste it using this button. The fields above it are then filled in automatically.

Connection string

You can find the connection string in the properties of the Event Hub in the Microsoft Azure Portal.

Message timeout

Time in seconds that ibaPDA waits for a response from the Event Hub.

<Test connection>

Use the <Test connection> button to test the connection to the Event Hub.

Enable SSL verification

When the SSL verification is enabled, a CA certificate is required. Usually, the "DigiCert Global Root G2" certificate is to be selected. This is the current CA root cerificate. When installing ibaPDA , this cerificate is automatically stored in the certificate store.
