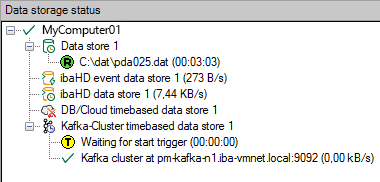

The data storage status window shows the current status of the data stores.

All defined data stores and their respective status are displayed here, depending on the data store, with server address, acquisition duration, write speed, etc.

The icon in front of the name indicates the current status of the storage:

	Wait for the start trigger (only for triggered recording)
	Recording in progress
	Post-trigger phase; stop trigger occurred, but acquisition continues until the post-trigger time is over
	Disabled or faulty data store is indicated by a red cross in the data store icon.

Right-clicking on this node allows you to manually send a start or stop trigger.
