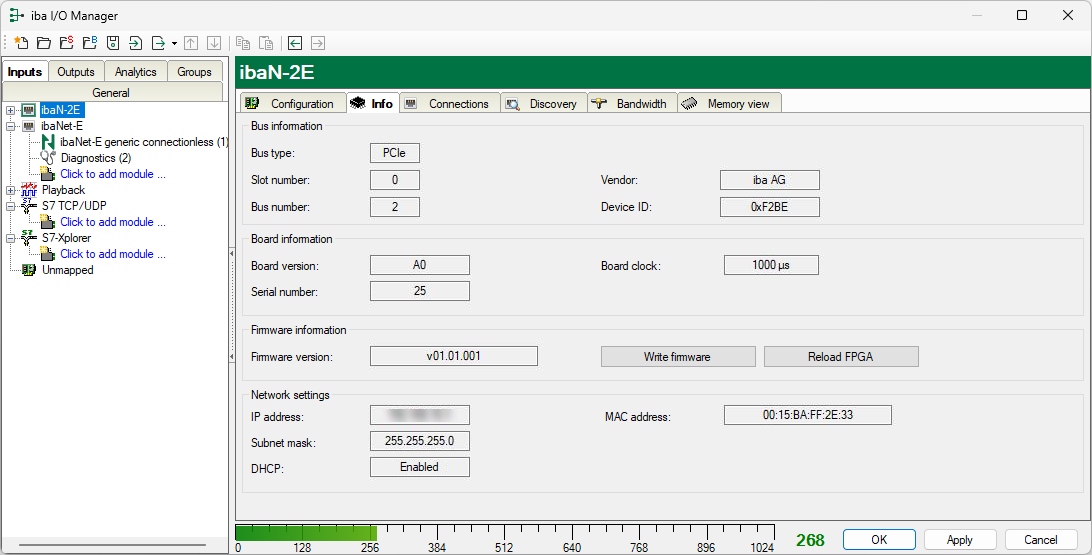

The Info tab provides information about the card and the loaded firmware. Functions for service and support, such as reloading the FPGA and updating the firmware, are also integrated.

Bus information

Display of current bus information.

Board information

Display of current board information.

Firmware information

Display of current firmware version.

<Write firmware>

Using the button, it is possible to install firmware updates.

1. Select the update file ibaN_v[xx.yy.zzz].iba in the browser.

2. Start the update with a click on <Write firmware>.

3. The following dialog informs you about the progress of the update.

Note
	This process may take several minutes and must not be interrupted.

Network settings

Display of network interface, IP address, subnet mask, MAC address and whether DHCP is enabled.
