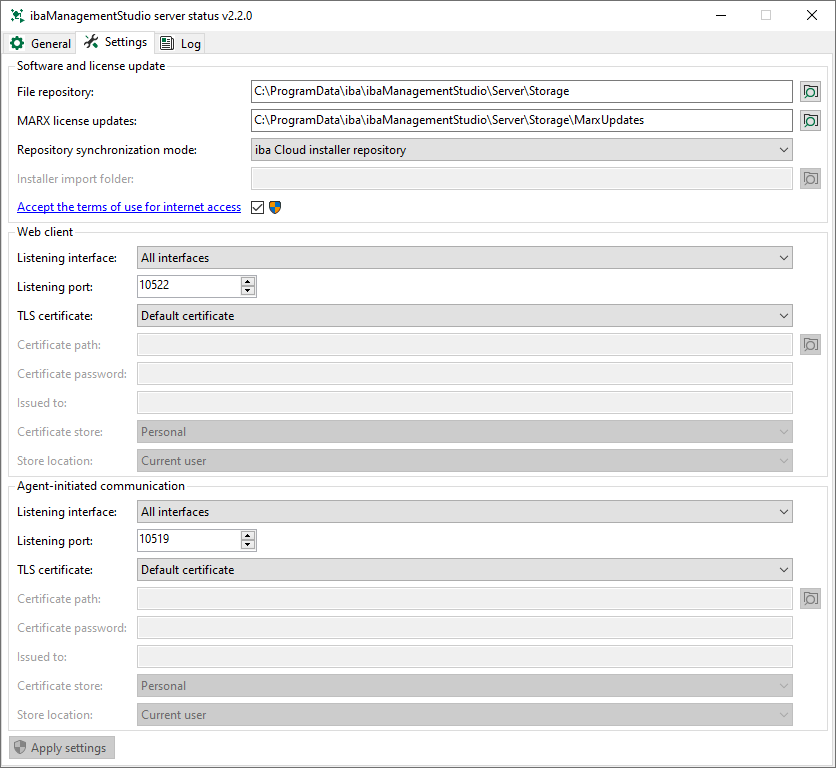

If ibaManagementStudio Server Status is open, you can configure the web client and agent-initiated communication in the Settings tab.

No additional settings are available for LAN communication in ibaManagementStudio Server Status.

To save your settings, click on <Apply settings>.

Settings for software and license update

  • File repository: Enter the directory where ibaManagementStudio Server stores the installer files for iba software updates, see Update files and file repository. The default directory is: C:\ProgramData\iba\ibaManagementStudio\Server\Storage\Persisted

  • MARX license updates: Enter the directory in which you store the license update files for the MARX dongle, see Updating MARX licenses. The default directory is: C:\ProgramData\iba\ibaManagementStudio\Server\Storage\MarxUpdates

  • Repository synchronization mode: Select the method you want to use to synchronize the file repository: For more information, see Synchronization of the repository.

    • iba Cloud Installer repository: Synchronization takes place via the iba cloud.

    • Local import folder: Synchronization takes place via the import folder of the installer files, which you set here.

    • None: The directory is not synchronized automatically. You must then upload the installer files manually via the web client under Repository.

  • Installer import folder: Enter a directory from which installation files can be copied to the file repository. This can, for example, be the directory of the supplied data medium that contains the installer files for the iba software. The default directory is: C:\ProgramData\iba\ibaManagementStudio\Server\Storage\Import

  • Accept the terms of use for internet access: If you want to update WIBU licenses via the iba gateway or use the iba Cloud Installer repository, ibaManagementStudio Server requires access to the Internet. To do this, you must agree to the terms of use and activate the option.

    If you deactivate this option later, ibaManagementStudio Server can no longer communicate with the iba WIBU gateway and the iba Cloud Installer repository. You will then no longer be able to use these functions.

    To accept or revoke the terms of use, you must run ibaManagementStudio Server Status as administrator.
Settings for the web client or agent-initiated communication

  • Listening interface: Select the interfaces for the connection. Interfaces that are not selected will not be used for the connection.

  • Listening port: Configure the port number for the corresponding connection.

  • TLS certificate: Configure the certificate for the corresponding connection.

    The default certificate was generated during installation of ibaManagementStudio. If you use a certificate other than the default certificate, you must specify additional settings.
