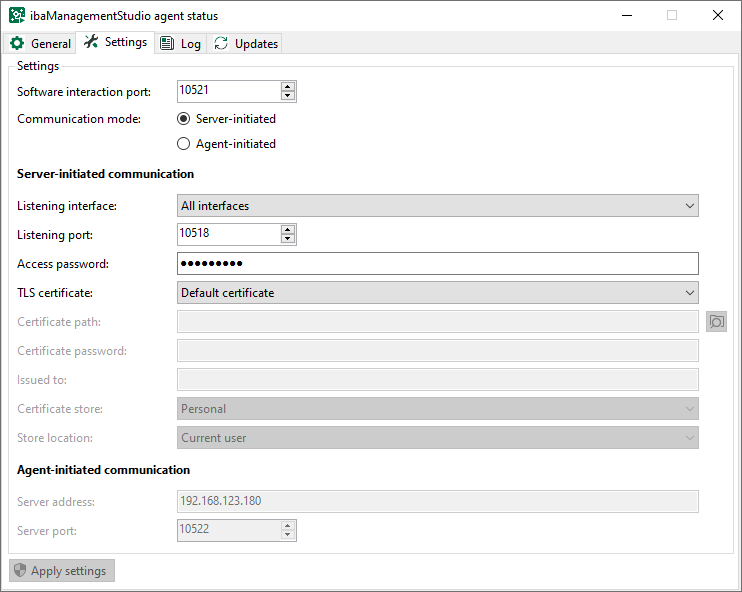

When ibaManagementStudio Agent Status is open, you can configure settings for your device, LAN mode or WAN mode when communicating with the server in the Settings tab.

To save your settings, click on <Apply settings>.

Settings for your device

  • Software interaction port: Via this port, ibaManagementStudio communicates with the different iba software products.

    If you change this port number, you have to restart the software services. This is the only way the software can connect to the ibaManagementStudio Agent.

  • Connection mode: Select the communication mode with the server. Specify additional settings for your selected communication mode.
Server-initiated communication settings

  • Listening interface: Select the interfaces for the connection. Interfaces that are not selected will not be used for the connection.

  • Listening port: Set the port number for connection to the server.

  • Access password: Optionally, set the access password for connection via the web client. This way you can protect the connection to the agent so that other servers cannot connect to the agent.

    The password must be at least 8 characters long.

  • TLS certificate: Configure the certificate for connection to the server.

    The default certificate was generated during installation of ibaManagementStudio. If you use a certificate other than the default certificate, you must specify additional settings.
Agent-initiated communication settings

  • Server address: Set the IP address of the ibaManagementStudio server.

  • Server port: Set the port number for the ibaManagementStudio server.
