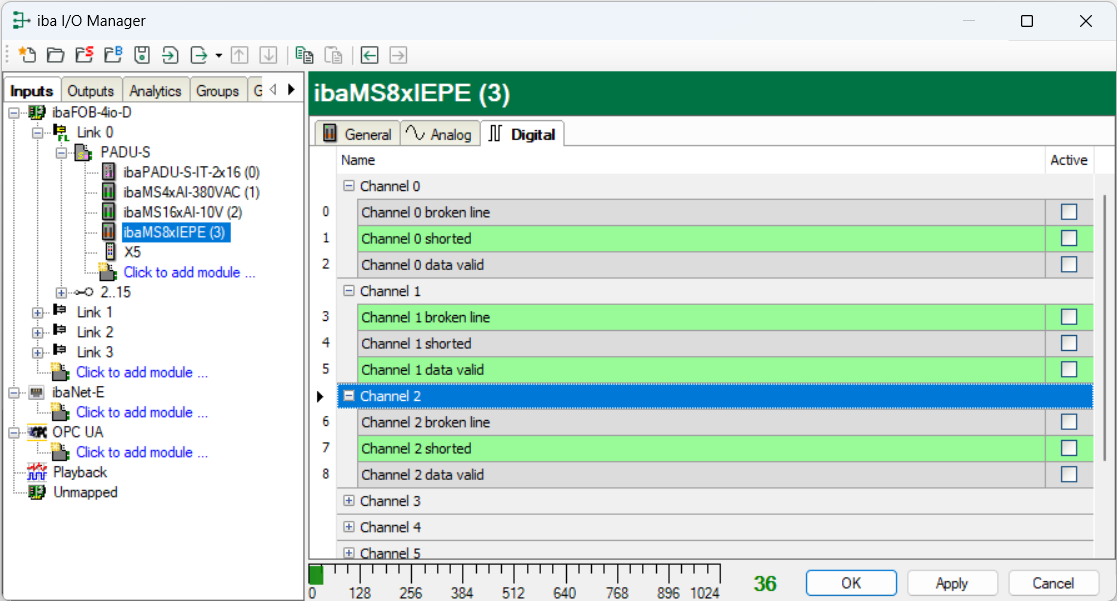

Depending on the operating mode, error and status signals can be enabled for each channel in the Digital tab, see Error and status signals.

Name

The names are already preset. You can enter additional two comments when clicking the symbol in the Name field.

• Channel […] broken line (only in IEPE mode)

  Status signal indicates, whether there is a broken line or a channel is not connected.

• Channel […] shorted (only in IEPE mode)

  Status signal indicates a short circuit of the channel.

• Channel […] data valid (in IEPE and 24V DC/AC mode)

  Status signal indicates, whether the data is valid.

  When 24V DC/AC mode is selected, only the signal “Channel […] data valid” can be selected:







Active

Enabling/disabling the signal.
