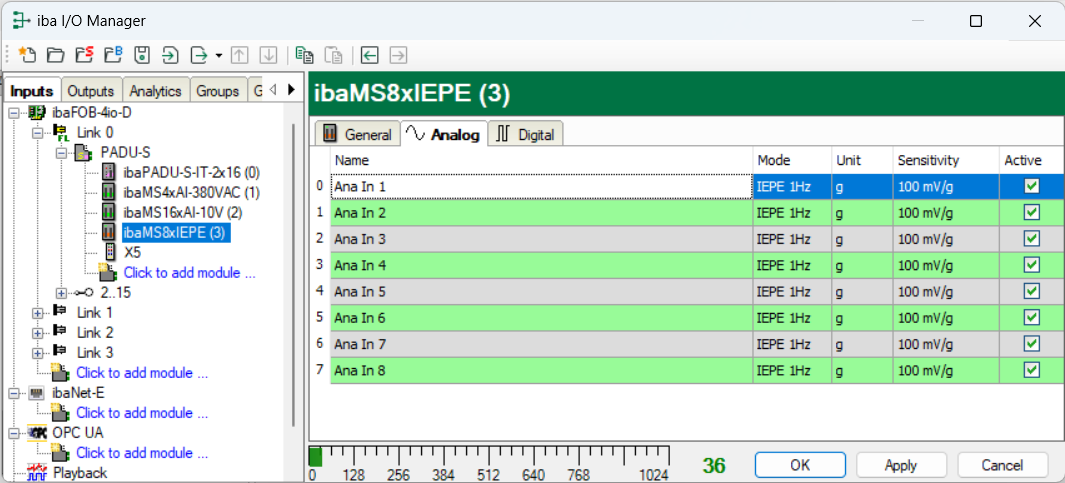

In the Analog tab, make the following settings for the ibaMS8xIEPE module:

Name

You can enter a signal name and additionally two comments when clicking on the symbol in the Name field.

Mode

The mode can be selected from a drop-down menu, see Analog inputs.

• IEPE mode is the fixed setting for channels 0, 2, 4 and 6, but the filter can be selected:







• Mode selection for the channels 1, 3, 5 and 7:







Min/Max

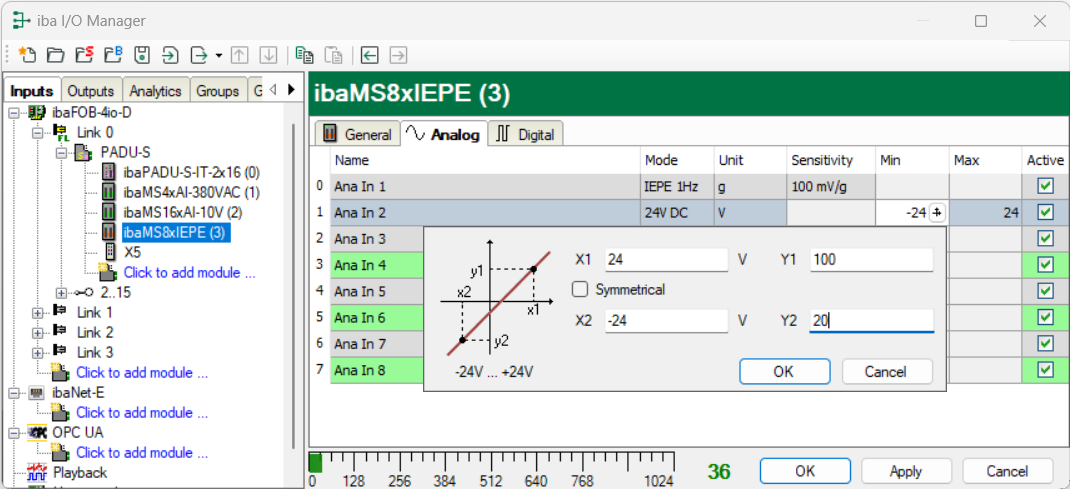

When the modes “24V AC” or “24V DC” are selected, the columns Min and Max appear additionally. You can define a lower or upper measuring range limit here. The nominal voltage level of +/-24 V is assigned to a physical value.

Unit

You can enter a unit, the default setting is „g“.

Sensitivity

Enter here the sensitivity according to the used IEPE sensor.

Active

Enabling/disabling the signal.

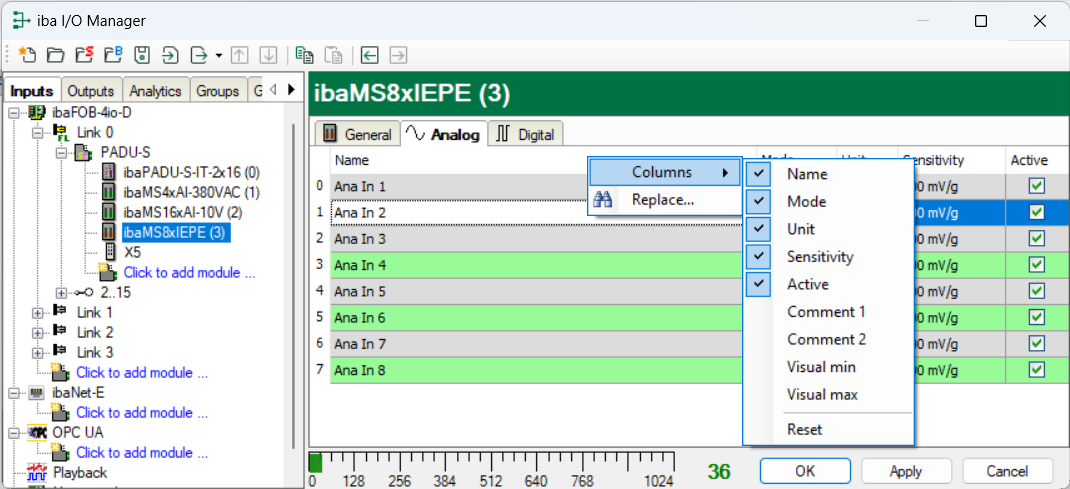

You can display or hide additional columns using the context menu (right mouse click in the heading line).
