Here, you can connect 8 input signals (0...7), each bipolar plus grounding. 2 input channels of a plug are grouped to one root. Each connector/each root is galvanically isolated.
Pin assignment
|
Pin |
Connection |
LED |
Pin |
Connection |
LED |
|
|---|---|---|---|---|---|---|
|
1 |
Analog input 00 + |
L26 |
1 |
Analog input 04 + |
L30 |
|
|
2 |
Analog input 00 − |
2 |
Analog input 04 − |
|||
|
3 |
GND |
3 |
GND |
|||
|
4 |
Analog input 01 + |
L27 |
4 |
Analog input 05 + |
L31 |
|
|
5 |
Analog input 01 − |
5 |
Analog input 05 − |
|||
|
6 |
GND 50 Ω |
6 |
GND 50 Ω |
|||
|
7 |
Analog input 02 + |
L28 |
7 |
Analog input 06 + |
L32 |
|
|
8 |
Analog input 02 − |
8 |
Analog input 06 − |
|||
|
9 |
GND |
9 |
GND |
|||
|
10 |
Analog input 03+ |
L29 |
10 |
Analog input 07 + |
L33 |
|
|
11 |
Analog input 03 − |
11 |
Analog input 07 − |
|||
|
12 |
GND 50 Ω |
12 |
GND 50 Ω |

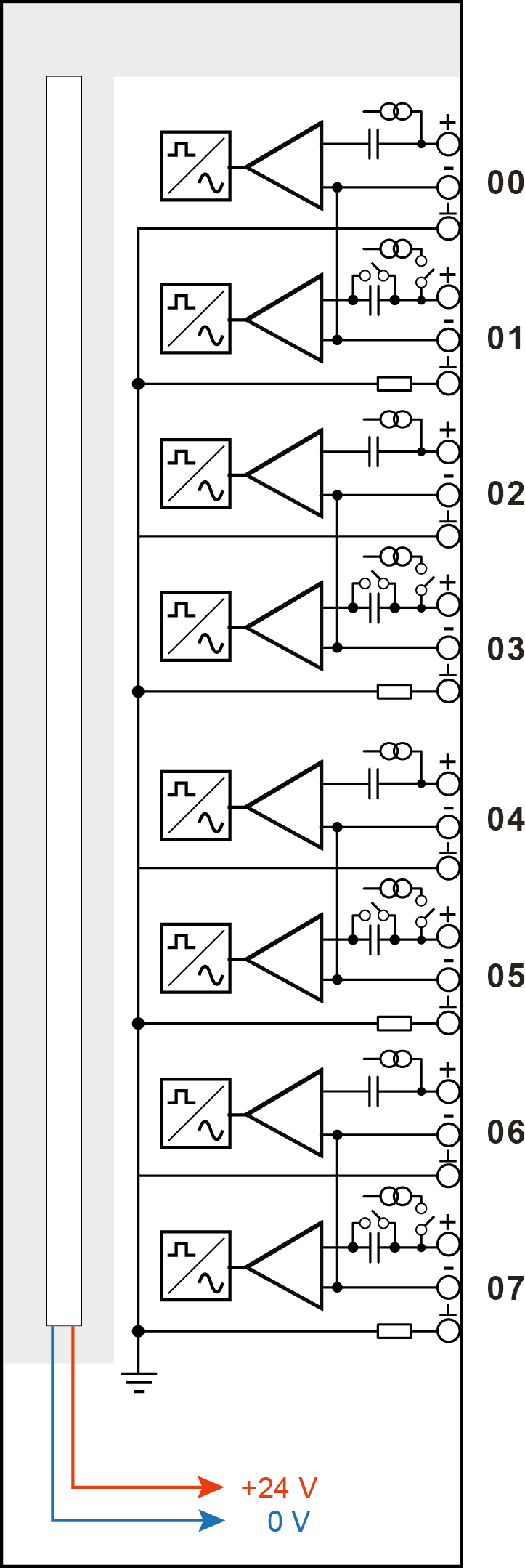

Circuit diagram 24V DC/AC

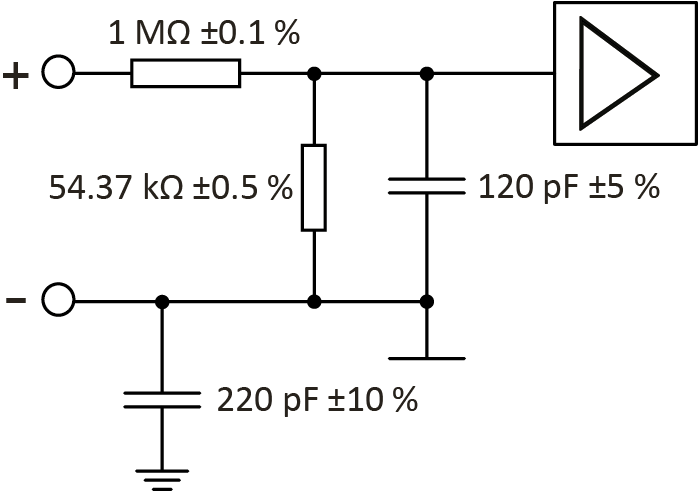

The input circuit diagram of one channel is shown here as an example.
