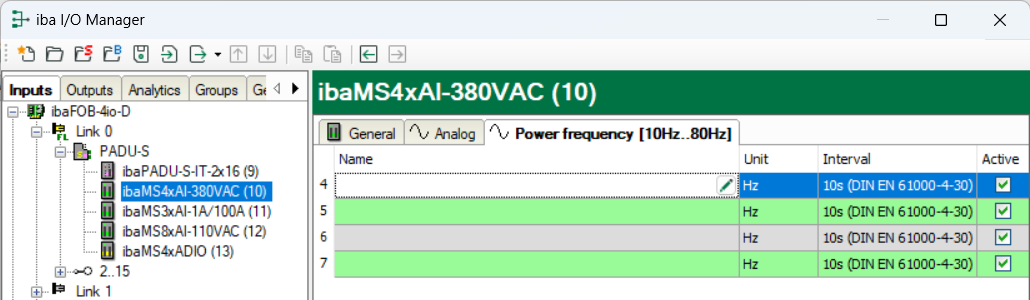

When power frequency measurement is enabled, this tab appears additionally.

Name

You can enter a signal name and additionally two comments when clicking on the symbol in the Signal name field.

Unit

Default value is „Hz“.

Interval

You can select the measuring interval via a drop-down menu: 1s or 10 s (according to DIN EN 61000-4-30).

Active

Enabling/disabling the signal.

You can display or hide additional columns using the context menu (right mouse click in the heading line).
