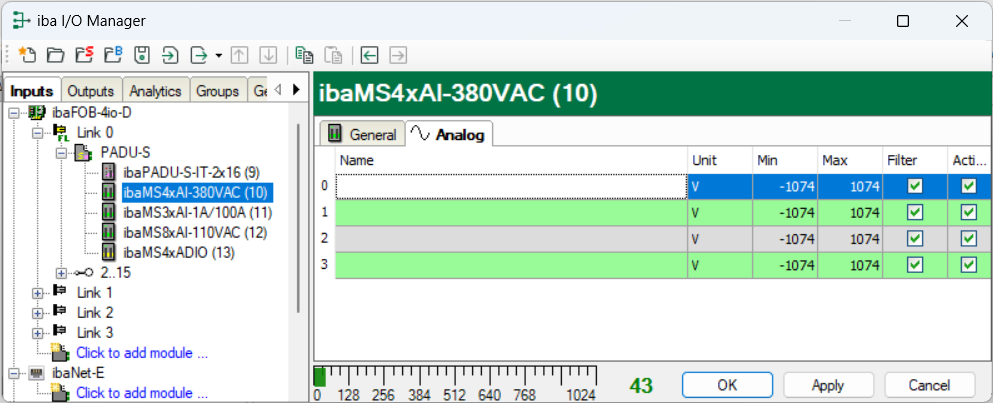

The following settings apply to the Analog tab:

Name

You can enter a signal name and additionally two comments when clicking on the  symbol in the Name field.

Unit

You can enter a unit, the default setting is “V”.

Min

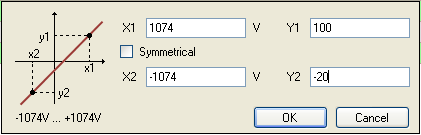

You can define a lower limit for the measuring range. The analog normalized value of -1074 V is assigned to a physical value, e.g. -20 °C.

Max

Here, you can define an upper limit for the measuring range. The analog normalized value of 1074 V is assigned to a physical value, e.g. +100 °C.

Filters

You can select the analog anti-aliasing filter Butterworth 4th order 20 kHz.

Active

Enabling/disabling the signal.

You can display or hide additional columns using the context menu (right mouse click in the heading line).
