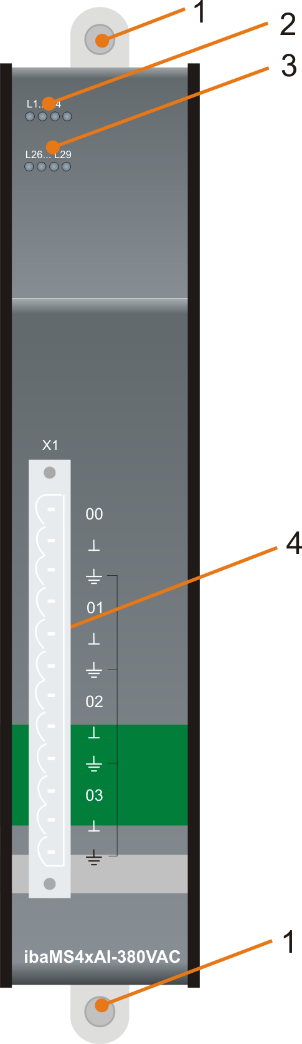

Front view
|
1 |
Fixing screws |
3 |
Status LEDs L26 to L29 of the analog inputs 00 to 03 |
|
2 |
Operating status indicators L1 to L4 |
4 |
Connector X1 for analog inputs 00 to 03 |

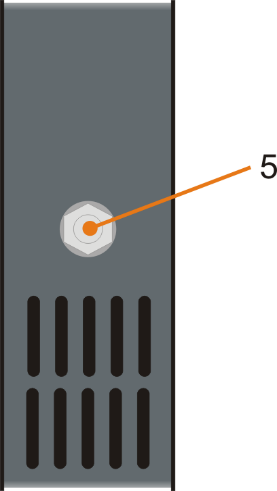

Bottom view
|
5 |
Grounding screw |
