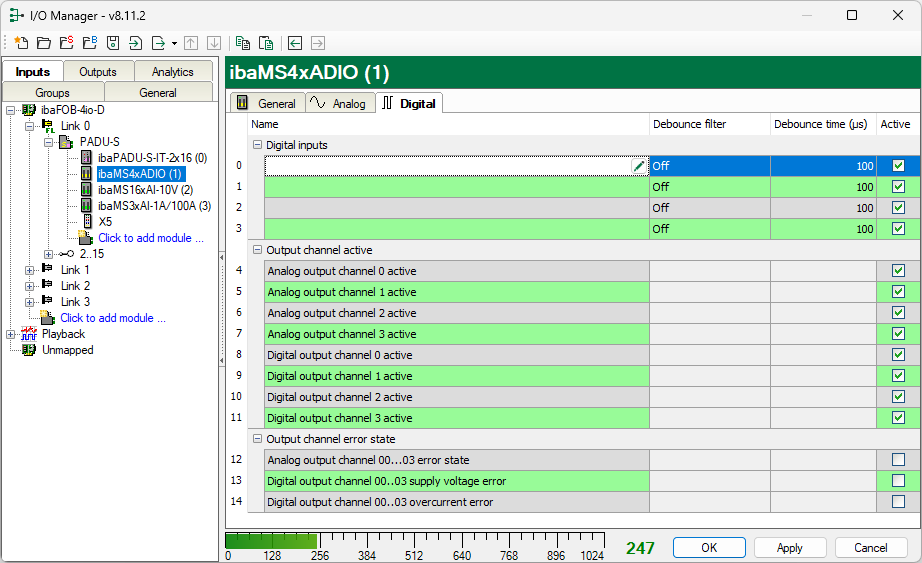

Make the following settings in the Digital tab:

Name

Here you can enter a signal name and additionally two comments when clicking the icon in the Name field.

Debounce filter

In the drop-down menu, you can choose the operating mode for the debounce filter. The following settings are available: Off, Stretch rising edge, Stretch falling edge, Stretch both edges, Delay both edges

See chapter Debounce filter inputs

Debounce time

Here you can set the time in µs during which a change of the signal value is not acquired.

Active

Enabling/disabling the signal.

Diagnostics channels

In the same Digital tab, you can enable status and error information:

Name

The signals have default names. You can edit the names and enter two additional comments when clicking the icon in the Name field.

  • Analog output channel [0…3] active

    status signal that indicates whether the analog output is active.

  • Digital output channel [0…3] active

    status signal that indicates whether the digital output is active

  • Analog output channel 00…03 error state

    status signal that indicates whether the 4 analog outputs of a root are in error state due to an overcurrent.

  • Digital output channel 00…03 load voltage error

    status signal that indicates whether there is a load voltage error on the 4 output channels of the root (at a time).

  • Digital output channel 00…03 overcurrent error

    status signal that indicates whether there is an overcurrent error on the 4 output channels of the root (at a time).

Active

Enabling/disabling the signal
