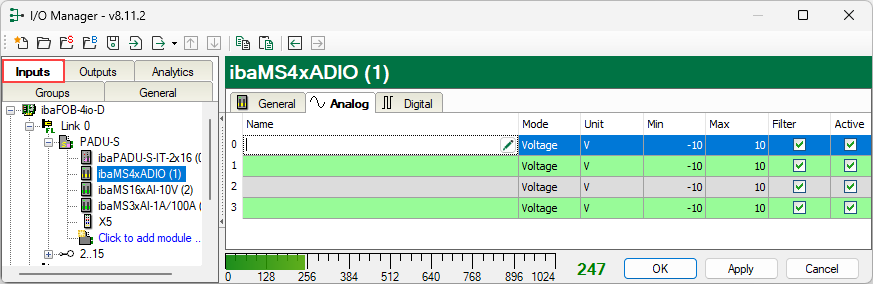

The following settings apply to the Analog tab:

Name

Here you can enter a signal name and additionally two comments when clicking the icon in the Name field.

Mode

In the drop-down menu you can select between voltage or current input.

Unit

The unit is automatically set according to the mode selection.

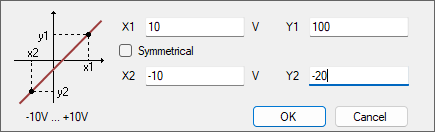

Min

You can define a lower limit for the measuring range. The analog normalized value of -10 V is assigned to a physical value, e. g. -20 °C.

Max

Here, you can define an upper limit for the measuring range. The analog normalized value of +10 V is assigned to a physical value, e. g. +100 °C.

Filter

You can select the anti-aliasing filter: Butterworth 4th order 20 kHz, see chapter Filter.

Active

Enabling/disabling the signal.

You can show or hide more columns via the context menu (click with the right mouse button in the headline).
