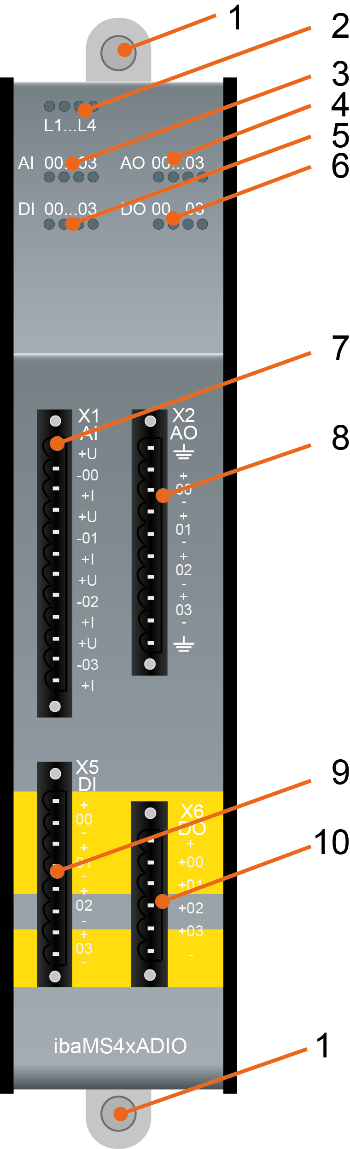

1 |
Fixing screws |
6 |
Status LEDs of digital outputs 00 to 03 |
|
2 |
Operating status indicators L1 to L4 |
7 |
Connector X1 for analog inputs 00 to 03 |
|
3 |
Status LEDs of analog inputs 00 to 03 |
8 |
Connector X2 for analog outputs 00 to 03 |
|
4 |
Status LEDs of analog outputs 00 to 03 |
9 |
Connector X5 for digital inputs 00 to 03 |
|
5 |
Status LEDs of analog outputs 00 to 03 |
10 |
Connector X6 for digital outputs 00 to 03 |
