Select the Outputs tab to configure the settings and signals at the output side.

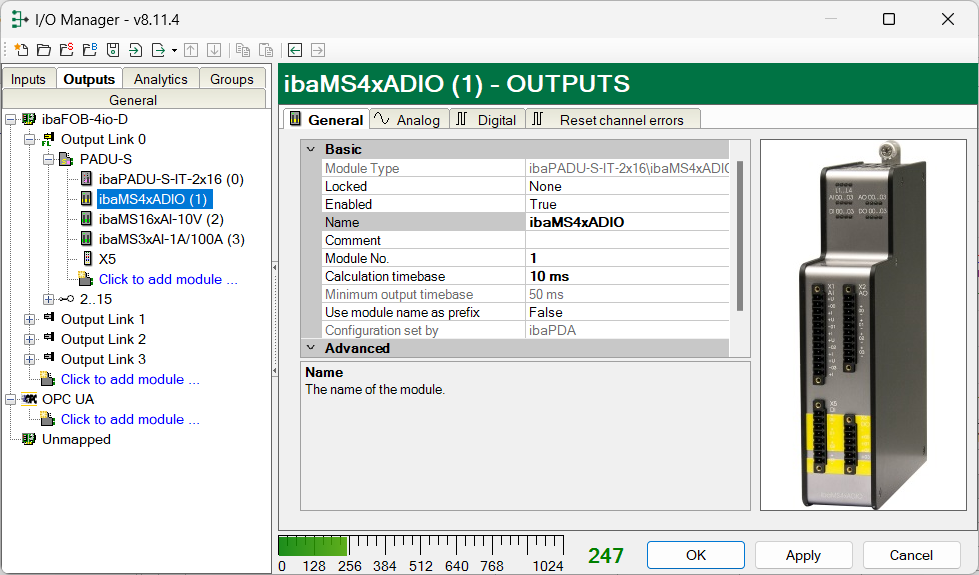

General tab
Most of the basic settings apply to the input and output module. The Calculation timebase and Minimum output timebase settings are only available for the output module.
Calculation timebase
Timebase (in ms) used for the calculation of the output values.
The calculation timebase is not the same as the output timebase with which the values are output!
Minimum output timebase
Timebase with which the outputs can be updated as quickly as possible.
The value is acquired automatically by the system based on the current I/O configuration and is only displayed here. The output timebase results from the smallest common multiple of all module timebases or is at least 50 ms.

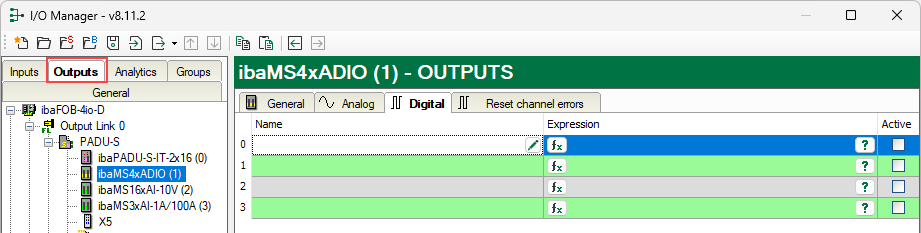

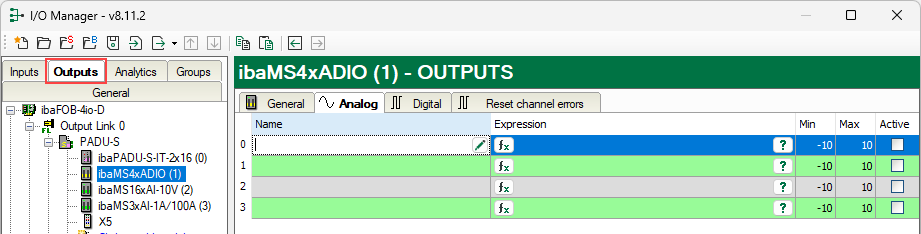

Analog and Digital tab
The Analog and Digital tabs have the same structure. The following parameters can be set:
Name
Here you can enter a signal name and additionally two comments when clicking the icon
in the Name field.
Expression
For each output you can specify a signal using the expression builder
. Signals can be linked mathematically or logically.
Active
Enabling/disabling the signal.
