Configuring signals

The signals can be configured in the I/O Configurator of ibaLogic-V5.

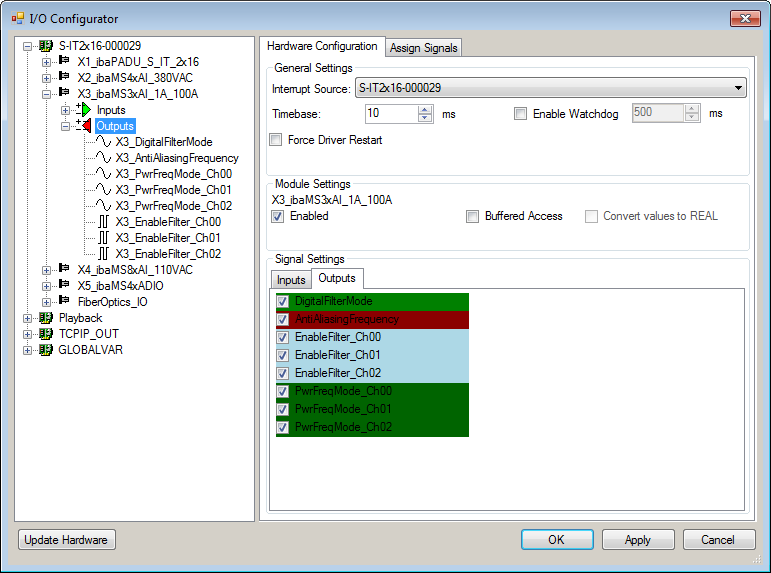

Open the I/O Configurator in the Tools – I/O Configurator menu.

Click on the <Update hardware> button.

ibaLogic-V5 detects the module.

The analog input channels and the power frequency signals are displayed in the Inputs tab.

Note

Only the 6.25 A range and the 1.56 A range offer analog filters in addition.

See Measuring ranges ibaMS3xAI-1A/100A

The filters are enabled and configured by means of signal outputs as well as the mode for power frequency measurement.

If Buffered Access is enabled, you can see additional input and output signals.

Note

You need to apply the buffered access by clicking on the <Apply> button. Only then, you will see additional signals in the signal tree that can be configured as output or input resources.

Signal

Meaning

Inputs

AI_6A25_Ch[00…02]

Analog input signals:

6.25A range (default range)

AI_100A_Ch[00…02]

Analog input signals:

100A range (expanded range)

AI_Frequency_Ch[00…02]

Calculated power frequencies

StatusIn

Status information about the plugged input module (for output module without function):

0 = module not initialized

1 = module running

>1 = error (e.g. Module cannot be initialized)

StatusOut

Status information about the plugged module (for input module without function):

0 = module not initialized

1 = module running

>1 = error (e.g. Module cannot be initialized)

Outputs

DigitalFilterMode

Activates the digital anti-aliasing filter in addition to the analog anti-aliasing filter (if activated)

AntiAliasingFrequency

Setting of the cutoff frequency of the digital anti-aliasing filter

EnableFilter_Ch[00…02]

Enables the analog anti-aliasing filters per channel within the ranges 6.25A and 1.56A

PwrFrqMode_Ch[00…02]

Setting of the measuring interval for power frequency measurement (per channel)

Additional input signals for buffered access

AI_6A25_Ch[00…02]_buf

Input buffer of analog signals:

6.25A range (default range)

AI_100A_Ch[00…02]_buf

Input buffer of analog signals:

100 A range (expanded range)

AI_Frequency_Ch[00…02]_buf

Input buffer of calculated power frequencies

BufferFillCount

Counter, when buffer is filled

BufferOverrun

Counter for Buffer-overrun

Additional output signals for buffered access

BufferSize

Buffersize

SubSampling

Subsampling of the signals

Signal	Meaning
Inputs
AI_6A25_Ch[00…02]	Analog input signals: 6.25A range (default range)
AI_100A_Ch[00…02]	Analog input signals: 100A range (expanded range)
AI_Frequency_Ch[00…02]	Calculated power frequencies
StatusIn	Status information about the plugged input module (for output module without function): 0 = module not initialized 1 = module running >1 = error (e.g. Module cannot be initialized)
StatusOut	Status information about the plugged module (for input module without function): 0 = module not initialized 1 = module running >1 = error (e.g. Module cannot be initialized)
Outputs
DigitalFilterMode	Activates the digital anti-aliasing filter in addition to the analog anti-aliasing filter (if activated)
AntiAliasingFrequency	Setting of the cutoff frequency of the digital anti-aliasing filter
EnableFilter_Ch[00…02]	Enables the analog anti-aliasing filters per channel within the ranges 6.25A and 1.56A
PwrFrqMode_Ch[00…02]	Setting of the measuring interval for power frequency measurement (per channel)
Additional input signals for buffered access
AI_6A25_Ch[00…02]_buf	Input buffer of analog signals: 6.25A range (default range)
AI_100A_Ch[00…02]_buf	Input buffer of analog signals: 100 A range (expanded range)
AI_Frequency_Ch[00…02]_buf	Input buffer of calculated power frequencies
BufferFillCount	Counter, when buffer is filled
BufferOverrun	Counter for Buffer-overrun
Additional output signals for buffered access
BufferSize	Buffersize
SubSampling	Subsampling of the signals
