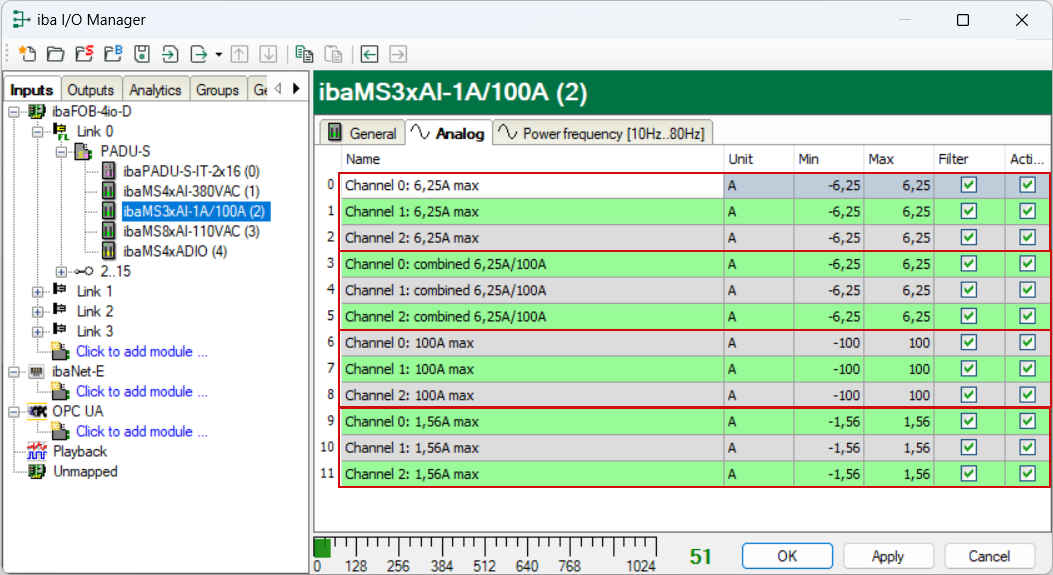

Make the following settings in the Analog tab.

Name

You can enter a signal name and additionally two comments when clicking on the symbol in the Name field.

The signal names of the ibaMS3xAI-1A/100A module are preset, see figure above.

Unit

The default setting is „A“

Min

You can define a lower limit for the measuring range. The analog normalized value of -6.25 A is assigned to a physical value, e.g. -100 A.

Max

Here, you can define an upper limit for the measuring range. The analog normalized value of +6.25 A is assigned to a physical value, e.g. +100 A.

Filters

You can select the anti-aliasing filter Butterworth 4th order 20 kHz.

Active

Enabling/disabling the signal.

You can display or hide additional columns using the context menu (right mouse click in the heading line).
