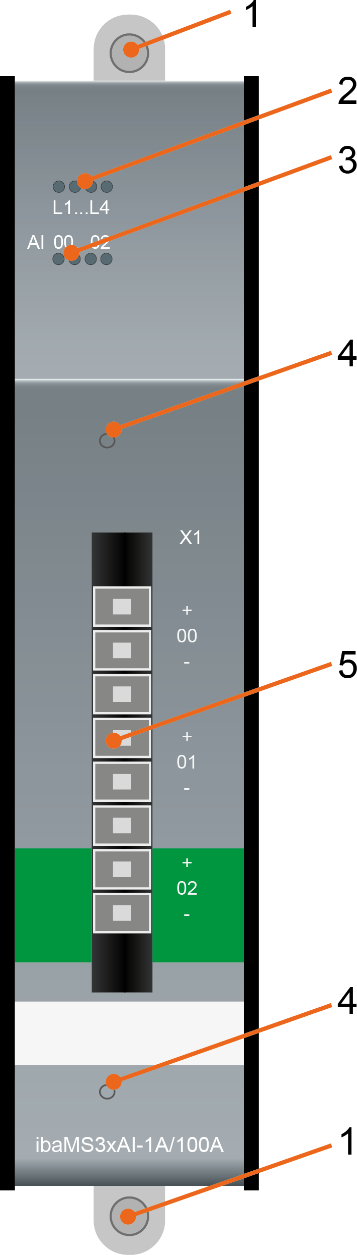

1 |
Fixing screws |
4 |
Screw holes for the fixing clamps |
|
2 |
Operating status indicators L1 to L4 |
5 |
Connector X1 for analog inputs 00 to 02 |
|
3 |
Status LEDs L26 to L29 of the analog inputs 00 to 02 |
|
6 |

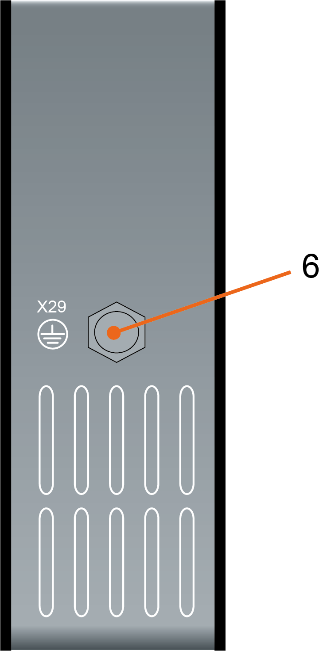

Earthing screw X29 |
