The signals can be configured in the I/O Configurator of ibaLogic-V5. Open the I/O Configurator in the Tools – I/O Configurator menu. When you click on the <Update hardware> button, then ibaLogic-V5 detects the module.

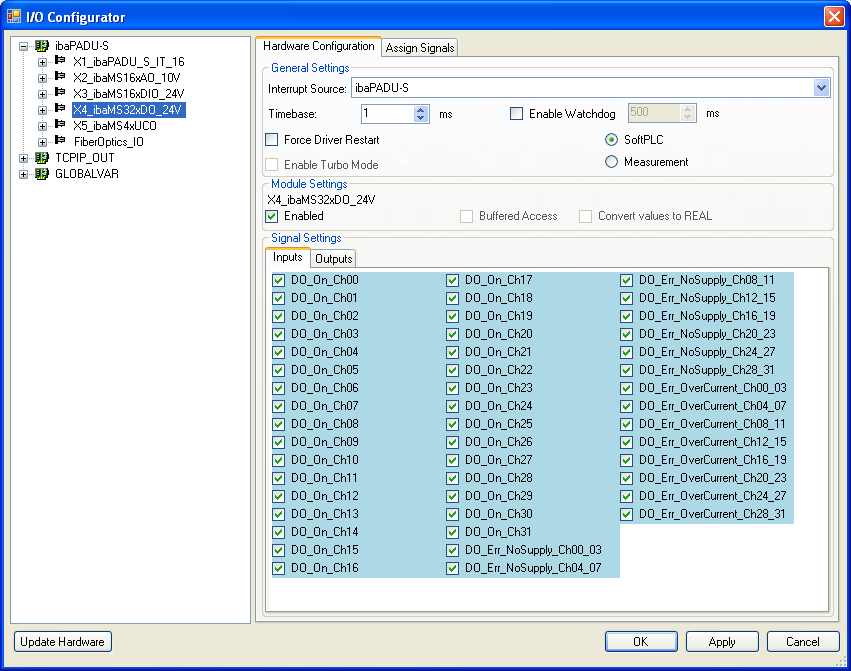

The Inputs tab contains diagnostic signals for enabling status and error information.
|
Signal |
Meaning |
|---|---|
|
Inputs |
|
|
DO_On_Ch[00…31] |
Digital output active |
|
DO_Err_NoSupply_Ch[00_03…28_31] |
Error in the supply voltage of a fourth-root |
|
DO_Err_OverCurrent_Ch[00_03…28_31] |
Channel (fourth-root) is in error status due to overcurrent |
|
StatusIn |
Status information about the plugged input module (for output module without function): 0 = module not initialized 1 = module running >1 = error (e.g. module cannot be initialized) |
|
StatusOut |
Status information about the plugged output module (for input module without function): 0 = module not initialized 1 = module running >1 = error (e.g. module cannot be initialized) |
|

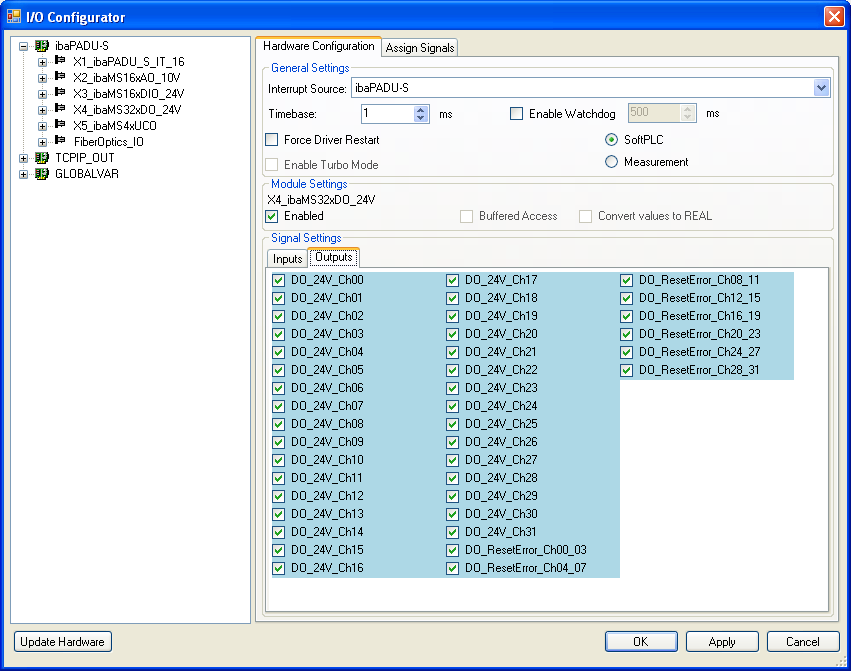

Outputs |
|
|
DO_24V_Ch[00…31] |
Digital output signals |
|
DO_ResetError_Ch[00_03…28_31] |
Output signal for resetting a hardware error |
