Hardware errors of the output channels can be reset in two ways:

• Manually using the <Reset> button

• Automatically by an output signal

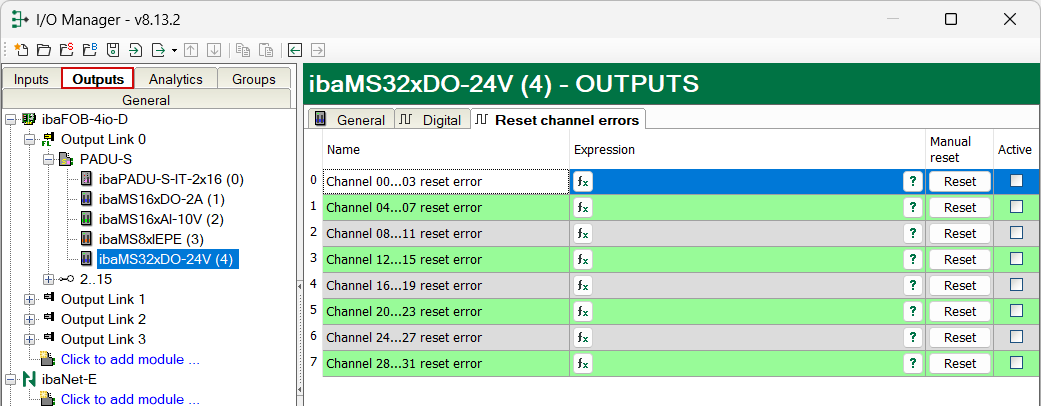

Make the following settings in the Reset channel errors tab in the Outputs tab:

Name

The name for the fourth-root is already preset. You can enter two additional comments by clicking on the icon in the Name field.

Expression

Using the expression builder f(x) you can define an output signal for resetting a hardware error.

Manual reset

Button to manually reset the hardware error

Active

Enabling/disabling the signal
