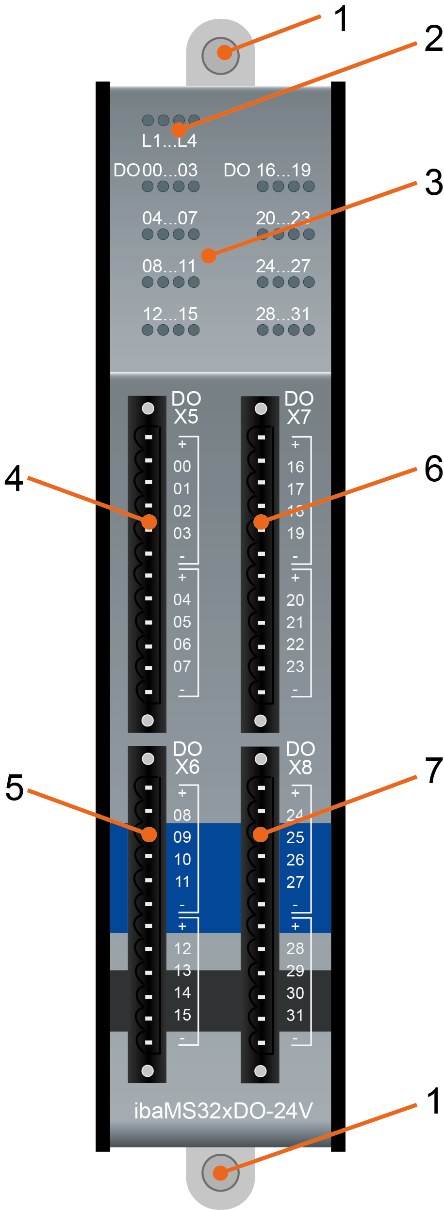

1 |
Fixing screws |
5 |
Connector X6 for digital outputs 08 to 15 |
|
2 |
Operating status indicators L1 to L4 |
6 |
Connector X7 for digital outputs 16 to 23 |
|
3 |
Status LEDs for digital outputs 00 to 31 |
7 |
Connector X8 for digital outputs 24 to 31 |
|
4 |
Connector X5 for digital outputs 00 to 07 |
