You can activate channel and error state signals for each channel in the Digital tab, in the Inputs tab.

Name

The status signals have default names. You can enter two additional comments by clicking on the icon in the Name field.

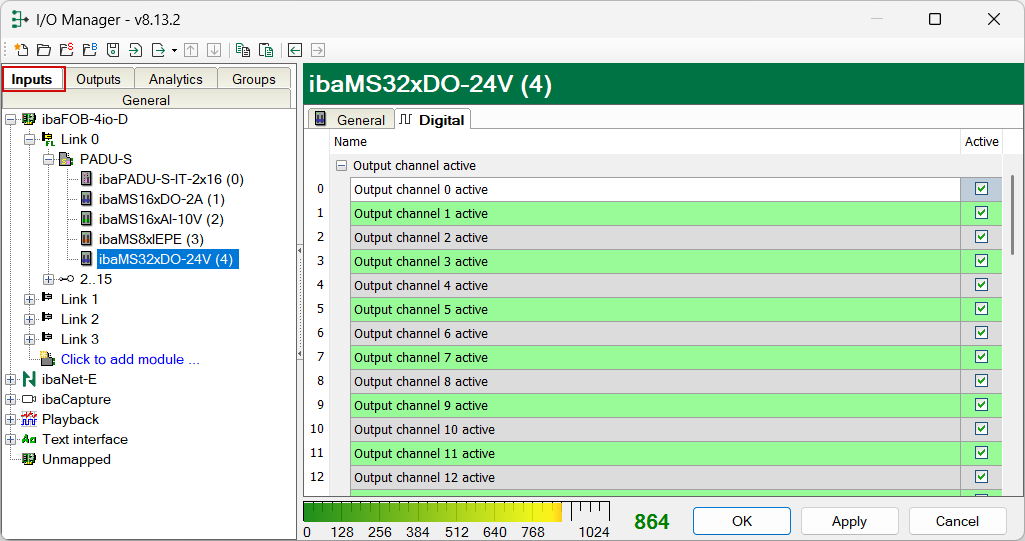

• Output channel [0…31] active: Output signal is ready

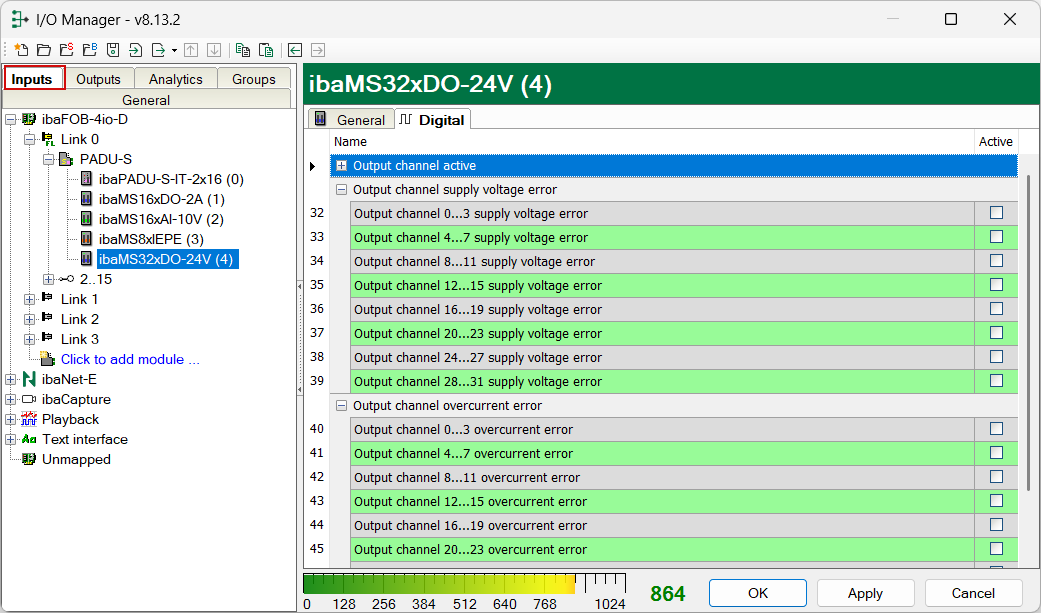

• Output channel […] supply voltage error: Error in the supply voltage of a fourth-root

• Output channel […] overcurrent error: Channel (fourth-root) is in error status due to overcurrent

Active

Enabling/disabling the signal
