32 output signals (0...31) can be connected.

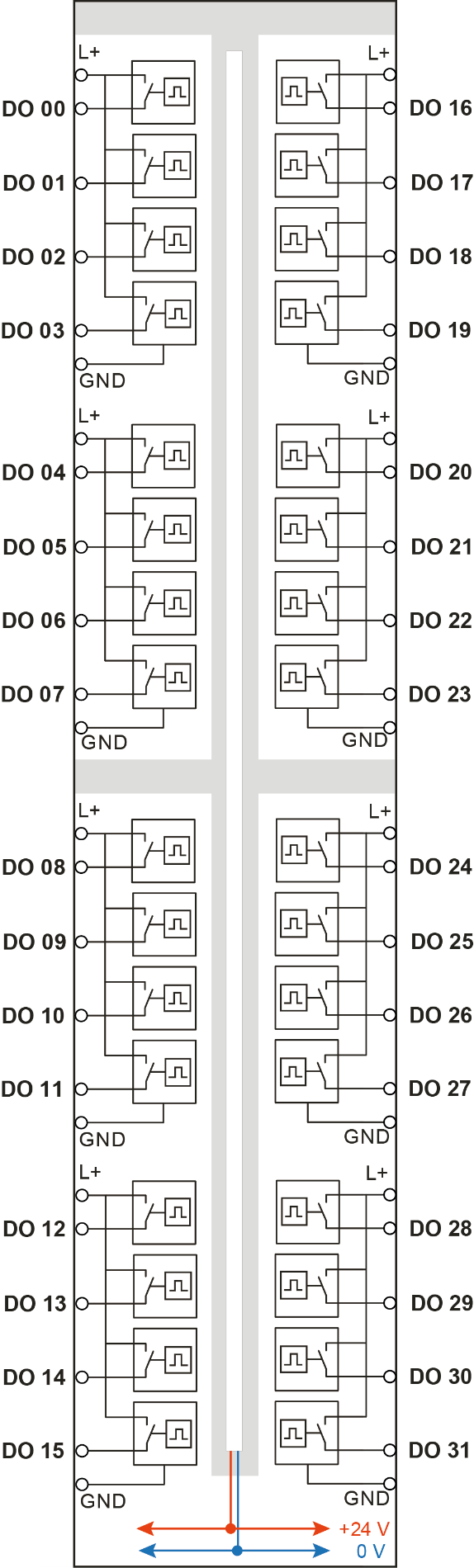

Pin assignment X5… X8
|
X5: Pin |
Connection |
X7: Pin |
Connection |
|
|
1 |
Load voltage (1) L+ |
1 |
Load voltage (5) L+ |
|
|
2 |
Digital output 00 |
2 |
Digital output 16 |
|
|
3 |
Digital output 01 |
3 |
Digital output 17 |
|
|
4 |
Digital output 02 |
4 |
Digital output 18 |
|
|
5 |
Digital output 03 |
5 |
Digital output 19 |
|
|
6 |
Load voltage (1) GND |
6 |
Load voltage (5) GND |
|
|
7 |
Load voltage (2) L+ |
7 |
Load voltage (6) L+ |
|
|
8 |
Digital output 04 |
8 |
Digital output 20 |
|
|
9 |
Digital output 05 |
9 |
Digital output 21 |
|
|
10 |
Digital output 06 |
10 |
Digital output 22 |
|
|
11 |
Digital output 07 |
11 |
Digital output 23 |
|
|
12 |
Load voltage (2) GND |
12 |
Load voltage (6) GND |
|
|
X6: Pin |
Connection |
X8: Pin |
Connection |
|
|
1 |
Load voltage (3) L+ |
1 |
Load voltage (7) L+ |
|
|
2 |
Digital output 08 |
2 |
Digital output 24 |
|
|
3 |
Digital output 09 |
3 |
Digital output 25 |
|
|
4 |
Digital output 10 |
4 |
Digital output 26 |
|
|
5 |
Digital output 11 |
5 |
Digital output 27 |
|
|
6 |
Load voltage (3) GND |
6 |
Load voltage (7) GND |
|
|
7 |
Load voltage (4) L+ |
7 |
Load voltage (8) L+ |
|
|
8 |
Digital output 12 |
8 |
Digital output 28 |
|
|
9 |
Digital output 13 |
9 |
Digital output 29 |
|
|
10 |
Digital output 14 |
10 |
Digital output 30 |
|
|
11 |
Digital output 15 |
11 |
Digital output 31 |
|
|
12 |
Load voltage (4) GND |
12 |
Load voltage (8) GND |
