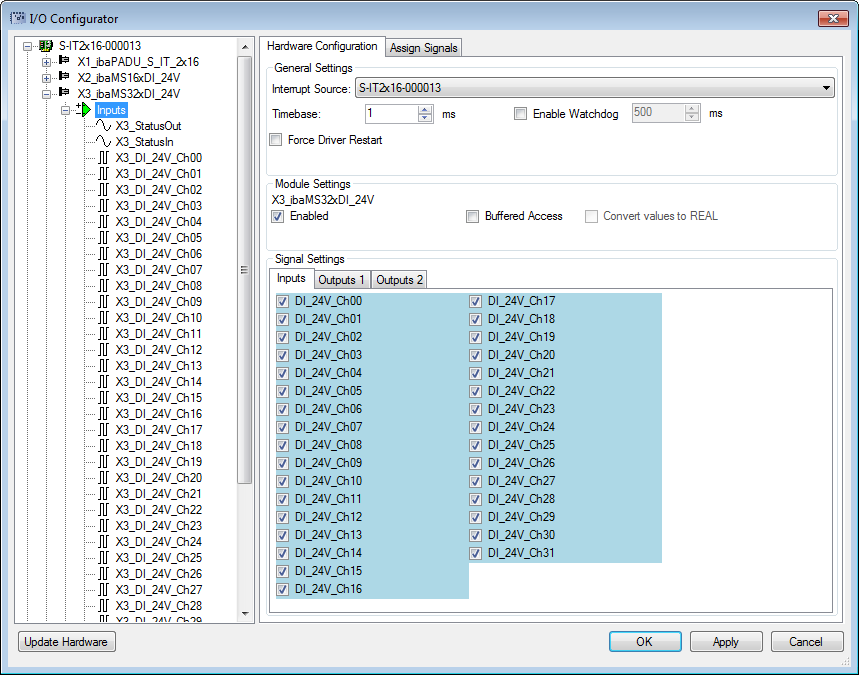

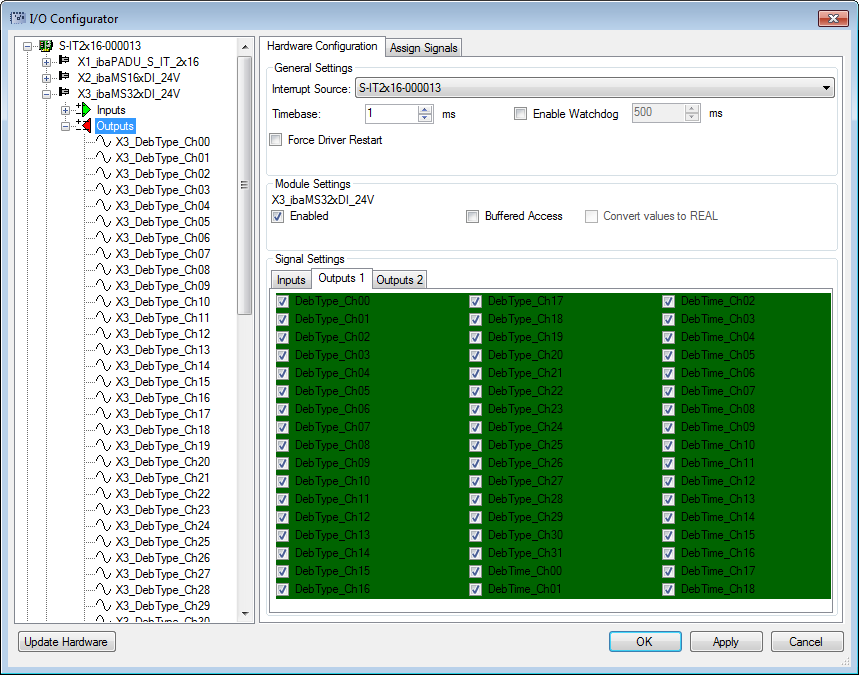

The signals can be configured in the I/O Configurator of ibaLogic-V5. Open the I/O Configurator in the Tools – I/O Configurator menu. When you click on the <Update hardware> button, then ibaLogic-V5 detects the module.
If Buffered Access is enabled, you can see additional input and output signals.
Note |
|
|---|---|
 |
You need to apply the Buffered Access by clicking on the <Apply> button. Only then, you will see additional signals in the signal tree that can be configured as output or input resources. |
|
Signal |
Meaning |
|---|---|
|
Inputs |
|
|
DI_24V_Ch[00… 31] |
Digital input signals |
|
StatusIn |
Status information about the plugged input module (for output module without function): 0 = module not initialized 1 = module running >1 = error (e.g. module cannot be initialized) |
|
StatusOut |
Status information about the plugged output module (for input module without function): 0 = module not initialized 1 = module running >1 = error (e.g. module cannot be initialized) |
|
Outputs |
|
|
DebType_Ch[00…31] |
Debounce filter for digital signals |
|
DebTime_Ch[00...31] |
debounce time for the single digital signal |
|
Additional input signals for buffered access |
|
|
BufferFillCount |
Counter, when buffer is filled |
|
BufferOverrun |
Counter for buffer overrun |
|
Additional output signals for buffered access |
|
|
BufferSize |
Buffersize |
|
SubSampling |
Subsampling of the signals |
