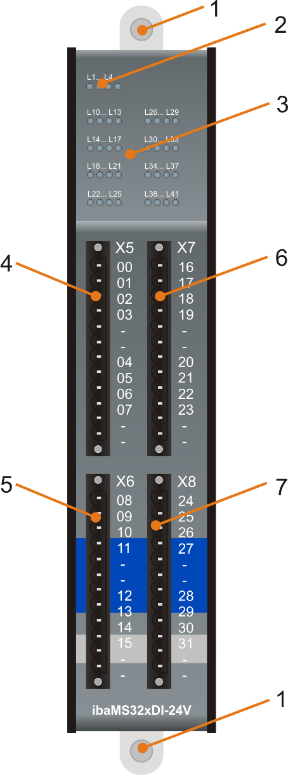

1 |
Fixing screws |
5 |
Connector X6 for digital inputs 08 to 15 |
|
2 |
Operating status indicators L1 to L4 |
6 |
Connector X7 for digital inputs 16 to 23 |
|
3 |
Status LEDs L10 to L41 of the digital inputs 00 to 31 |
7 |
Connector X8 for digital inputs 24 to 31 |
|
4 |
Connector X5 for digital inputs 00 to 07 |
