The signals can be configured in the I/O Configurator of ibaLogic-V5.
Other documentation |
|
|---|---|
 |
Combined with ibaLogic-V5, an ibaPADU-S-IT-2x16 device can be used to realize individual signal pre-processing or stand-alone applications. The basic procedure for using ibaLogic-V5 is described in the manual for the ibaPADU-S-IT-2x16 central unit. This manual describes only the signals belonging to this module. |

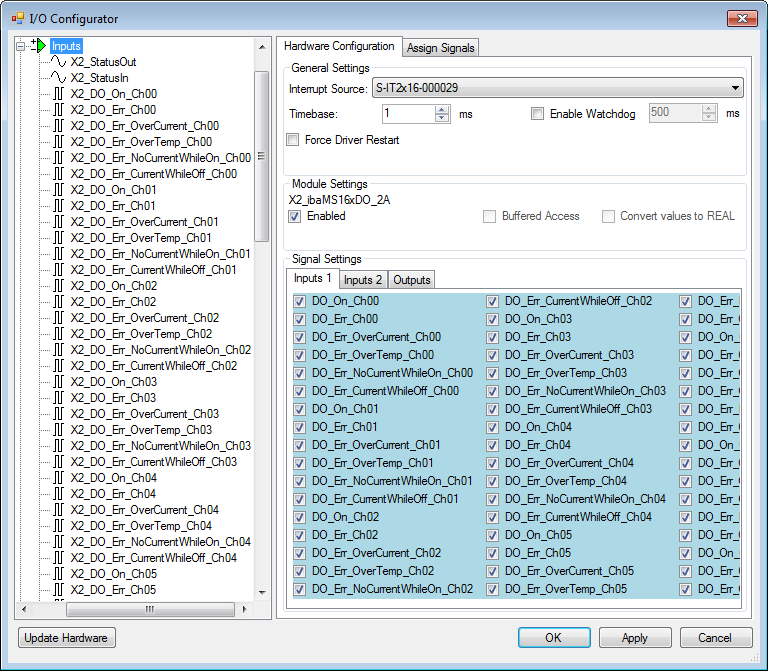

Open the I/O Configurator in the Tools – I/O Configurator menu. When you click on the <Update hardware> button, then ibaLogic-V5 detects the module.
ibaMS16xDO-2A offers the following signal groups:
-
Outputs
-
Inputs

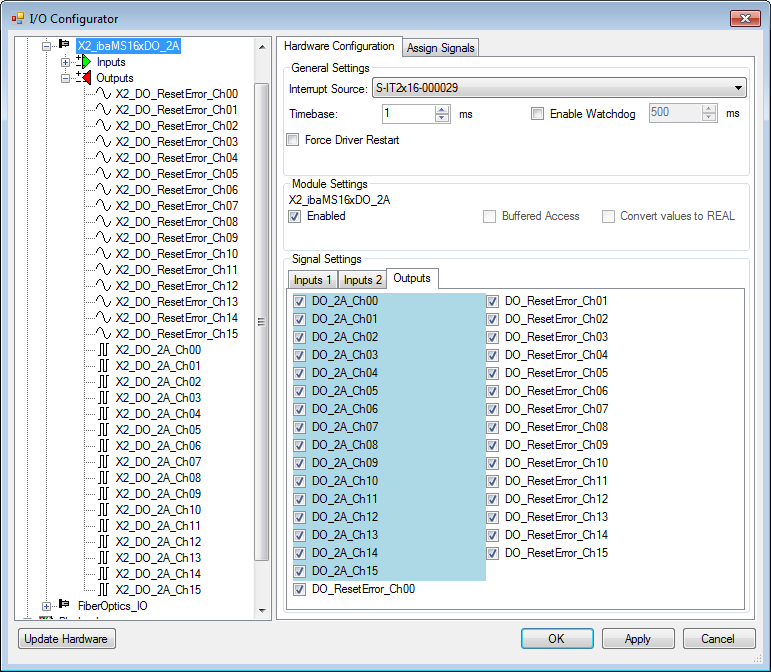

The digital output channels as well as the ResetError signals are shown under Outputs.
All available status or error information is listed under Inputs.
|
Signal |
Meaning |
|---|---|
|
Inputs |
|
|
DO_On_Ch[00…15] |
Channel status: 0 = channel not ready for operation1 = channel ready for operation |
|
DO_Err_Ch[00...15] |
Group error per channel of DO_Err_OverCurrent_Ch[00…15] and DO_Err_OverTemp_Ch[00…15]. The error remains active until it is reset using ResetError_Ch[00…15]. |
|
DO_Err_OverCurrent_Ch[00…15] |
Error signal: single error „Overcurrent“, Statusbit, see Monitoring functions / Error states |
|
DO_Err_OverTemp_Ch[00...15] |
Error signal: single error „Over temperature“, Statusbit, see Monitoring functions / Error states |
|
DO_Err_NoCurrentWhileOn_Ch[00...15] |
Error signal: single error „Broken line“, Statusbit, see Monitoring functions / Error states |
|
DO_Err_CurrentWhileOff_Ch[00...15] |
Error signal: single error „Shorted switch“, Statusbit, see Monitoring functions / Error states |
|
StatusIn |
Status information about the plugged input module (for output module without function): 0 = Module not initialized 1 = Module running >1 = Error (e.g. module cannot be initialized) |
|
StatusOut |
Status information about the plugged module (for input module without function): 0 = Module not initialized 1 = Module running >1 = Error (e.g. module cannot be initialized) |
|
Outputs |
|
|
DO_2A_Ch[00...15] |
Digital output channels: 0 = channel is not connected 1 = channel is connected |
|
DO_ResetError_Ch[00...15] |
Resets the group error „DO_Err_Ch[00…15]“ zurück: 0 = error not reset 1 = reset errors (The length of an ibaLogic-V5 task cycle is sufficient as reset signal) |
