Hardware errors of the channels can be reset in two ways:

• Manual reset using the <Reset> button

• Automatic reset with an output signal

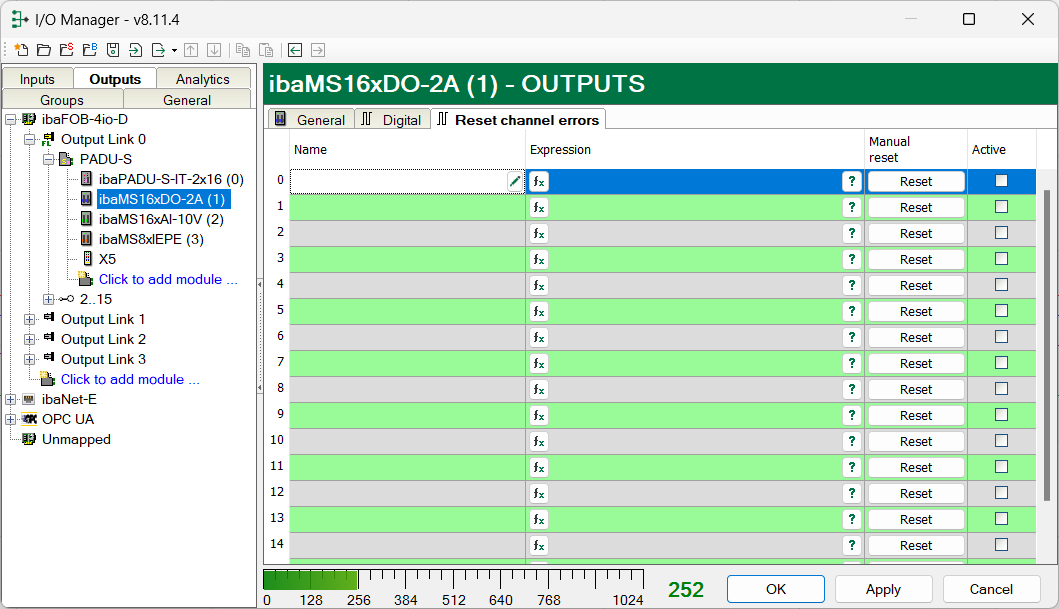

Make the following settings in the Reset channel errors tab, in the Outputs tab:

Name

Here you can enter a signal name and additionally two comments when clicking the icon in the Name field.

Expression

Using the expression builder f(x) you can define an output signal for resetting a hardware error.

Manual reset

Button to manually reset the hardware error

Active

Enabling/disabling the signal
