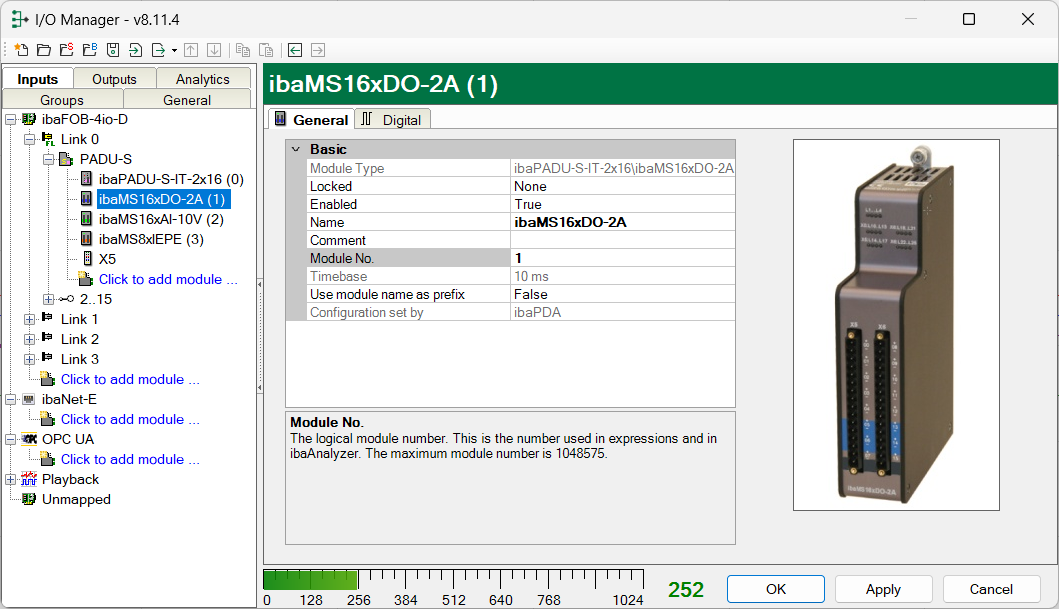

If the module is detected, click on the module in the signal tree and the General tab appears.



Basic settings

Module Type (information only)

Indicates the type of the current module.

Locked

You can lock a module to avoid unintentional or unauthorized changing of the module settings.

Enabled

Enable the module to record signals.

Name

You can enter a name for the module here.

Comment

You can enter a comment or description of the module here. This will be displayed as a tooltip in the signal tree.

Module No.

This internal reference number of the module determines the order of the modules in the signal tree of ibaPDA client and ibaAnalyzer.

Timebase

All signals of the module are sampled on this timebase.

Acquisition timebase specified in the PADU-S module

Use module name as prefix

This option puts the module name in front of the signal names.

Configuration set by

This item is only visible when ibaPADU-S-IT-2x16 is used as central unit. When an embedded application has been started on ibaPADU-S-IT-2x16 (e. g. ibaLogic), then ibaPDA cannot modify the configuration of the modules and signals. In this case the configuration is set by the embedded application. The following entries can be displayed:

  • ibaPDA

    When ibaPDA is displayed, an embedded application has not been started and the configuration can be set by ibaPDA.

  • Embedded application

    When embedded application is displayed, the configuration of the modules and signals is set by the embedded application on the device. In this case it is possible to import user-defined signal names, which are configured in the embedded application, provided that the embedded application supports this function (Import signal names: True)

    The modules and signals configured by the embedded application cannot be configured in ibaPDA, they are displayed in gray in the respective fields.

    The configuration is read by ibaPDA and used for the acquisition. Modules and signals which are not displayed in gray can be used in ibaPDA.
