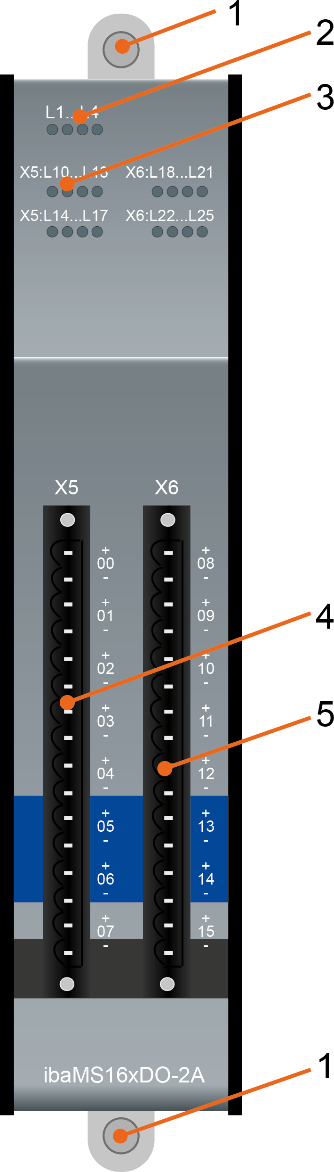

1 |
Fixing screws |
4 |
Connector X5 for digital outputs 00 to 07 |
|
2 |
Operating status indicators L1 to L4 |
5 |
Connector X6 for digital outputs 08 to 15 |
|
3 |
Status LEDs L10 to L25 of the digital outputs 00 to 15 |
|

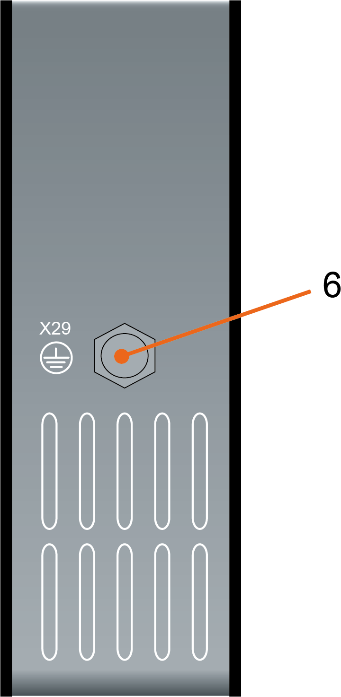

6 |
Grounding screw |
