Select the Outputs tab to configure the settings and signals at the output side.

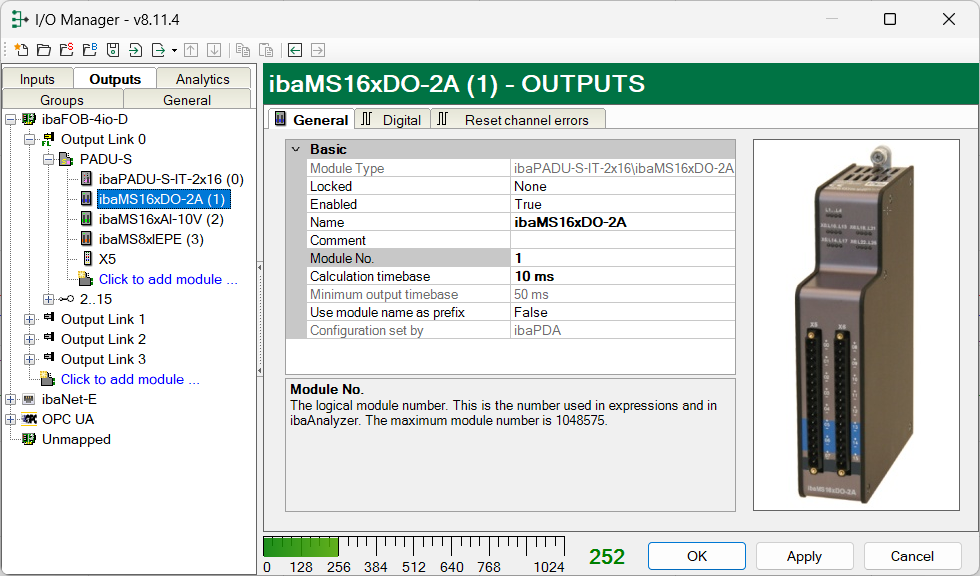

General tab
Most of the basic settings apply to the input and output module. The Calculation timebase and Minimum output timebase settings are only available for the output module.
Calculation timebase
Timebase (in ms) used for the calculation of the output values. The calculation timebase is not the same as the output timebase, with which the values are output. The calculation timebase is identical to the timebase of the input module.
Minimum output timebase (information only)
Timebase with which the outputs can be updated as quickly as possible. The output timebase results from the smallest common multiple of all module timebases or is at least 50 ms.

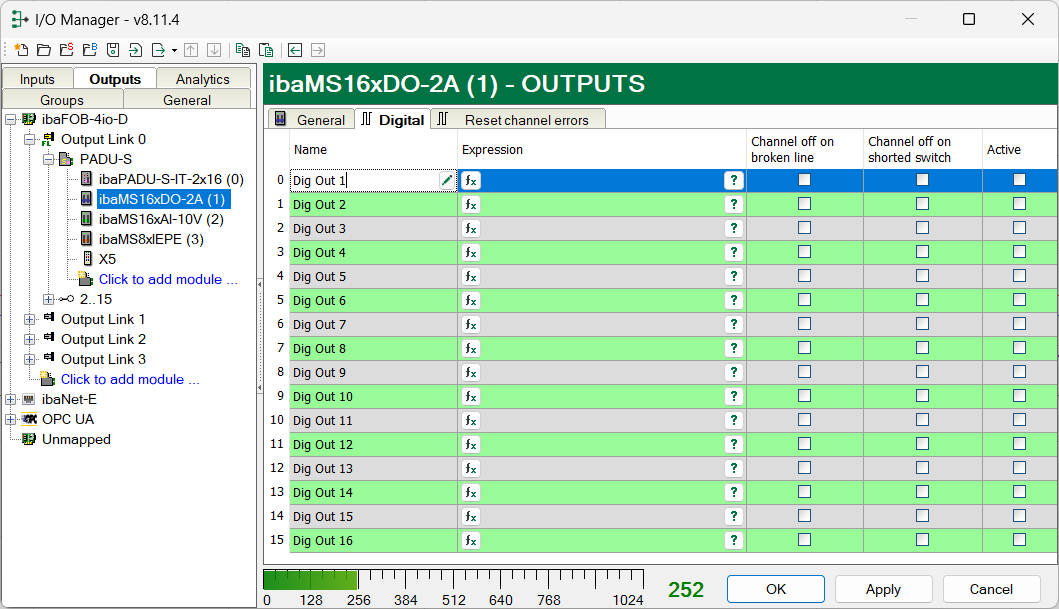

Digital tab
The following settings apply to the Digital tab:
Name
Here you can enter a signal name and additionally two comments when clicking the icon
in the Name field.
Expression
For each output you can specify a signal using the expression builder f(x). Signals can be linked mathematically or logically.
Channel off on broken line
If this option is enabled, the channel will be switched off in case of a broken line error.
Channel off on shorted switch
If this option is enabled, the channel will be switched off in case of a shorted switch error.
Active
Enabling/disabling the signal.
