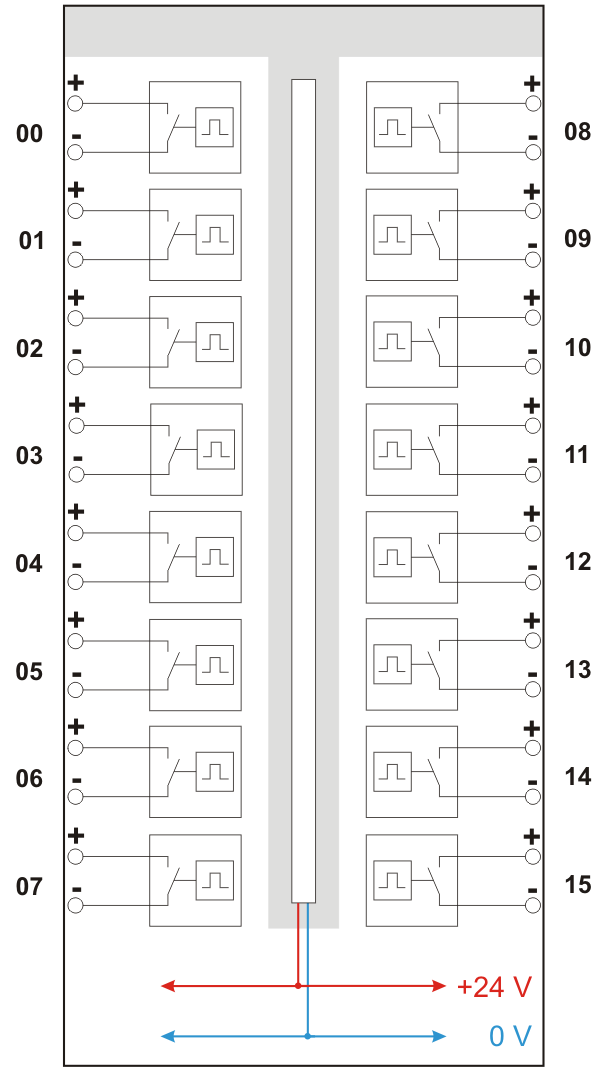

16 output signals (0...15), each bipolar and electrically isolated, can be connected. Each channel is connected by means of two-wire-connection. Each channel is connected by means of two-wire connection.
Pin assignment
|
X5 pin |
Connection |
LED |
X6 pin |
Connection |
LED |
|
|---|---|---|---|---|---|---|
|
1 |
Digital output 00 + |
L10 |
1 |
Digital output 08 + |
L18 |
|
|
2 |
Digital output 00 - |
2 |
Digital output 08 - |
|||
|
3 |
Digital output 01 + |
L11 |
3 |
Digital output 09 + |
L19 |
|
|
4 |
Digital output 01 - |
4 |
Digital output 09 - |
|||
|
5 |
Digital output 02 + |
L12 |
5 |
Digital output 10 + |
L20 |
|
|
6 |
Digital output 02 - |
6 |
Digital output 10 - |
|||
|
7 |
Digital output 03 |
L13 |
7 |
Digital output 11 + |
L21 |
|
|
8 |
Digital output 03 - |
8 |
Digital output 11 - |
|||
|
9 |
Digital output 04 + |
L14 |
9 |
Digital output 12 + |
L22 |
|
|
10 |
Digital output 04 - |
10 |
Digital output 12 - |
|||
|
11 |
Digital output 05 + |
L15 |
11 |
Digital output 13 + |
L23 |
|
|
12 |
Digital output 05 - |
12 |
Digital output 13 - |
|||
|
13 |
Digital output 06 + |
L16 |
13 |
Digital output 14 + |
L24 |
|
|
14 |
Digital output 06 - |
14 |
Digital output 14 - |
|||
|
15 |
Digital output 07 + |
L17 |
15 |
Digital output 15 + |
L25 |
|
|
16 |
Digital output 07 - |
16 |
Digital output 15 - |
