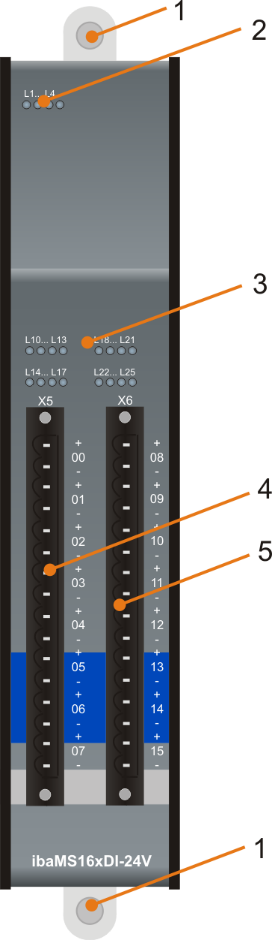

Front view
|
1 |
Fixing screws |
4 |
Connector X5 for digital inputs 00 to 07 |
|
2 |
Operating status indicators L1 to L4 |
5 |
Connector X6 for digital inputs 08 to 15 |
|
3 |
Status LEDs L10 to L25 of the digital inputs 00 to 15 |

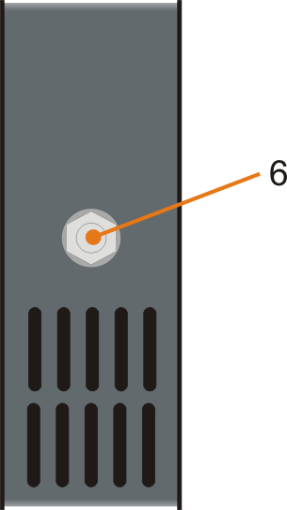

Bottom view
|
6 |
Grounding screw (only with ibaMS16xDI-220V) |
