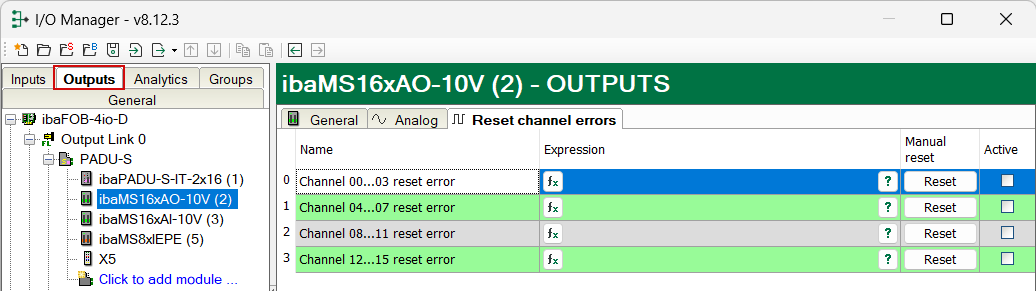

In the Outputs tab, under Reset channel errors, hardware errors in the quad root can be reset in two ways:

• Manually using the <Reset> button

• Automatically by an output signal

Make the following settings in the Reset channel errors tab:

Name

The name for the quad root is already preset. You can enter two additional comments by clicking on the icon in the Name field.

Expression

Using the expression builder f(x) you can define an output signal for resetting a hardware error.

Active

Enabling/disabling the signal
