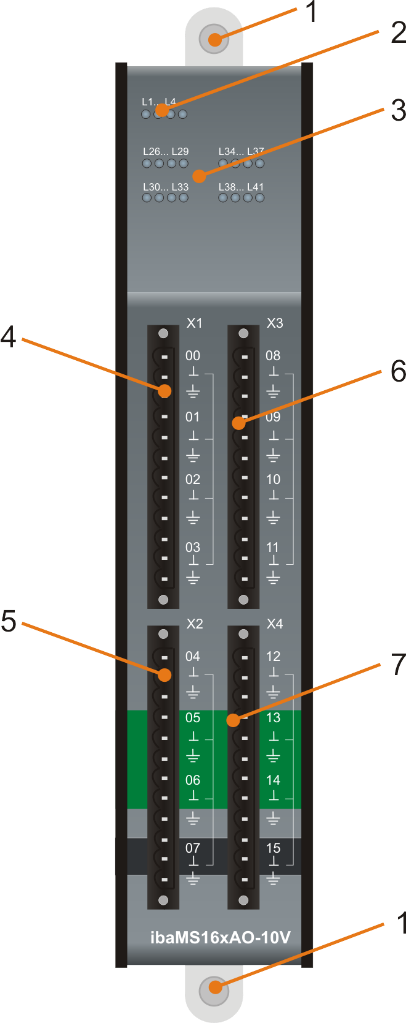

Front view
|
1 |
Fixing screws |
5 |
Connector X2 for analog outputs 04 to 07 |
|
2 |
Operating status indicators L1 to L4 |
6 |
Connector X3 for analog outputs 08 to 11 |
|
3 |
Status LED L26 to L41 of the analog outputs 00 to 15 |
7 |
Connector X4 for analog outputs 12 to 15 |
|
4 |
Connector X1 for analog outputs 00 to 03 |

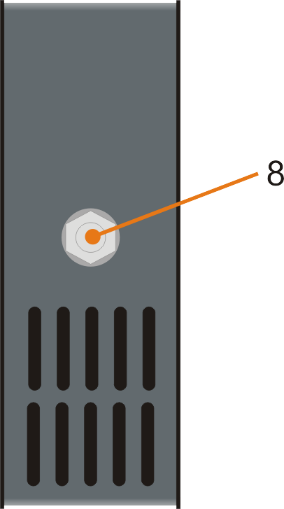

Bottom view
|
8 |
Grounding screw |
