Here, you can connect 16 output signals (0…15), each bipolar plus ground. Four signals each form a signal group. Signal groups are galvanically isolated from each other.
 |
 |
|

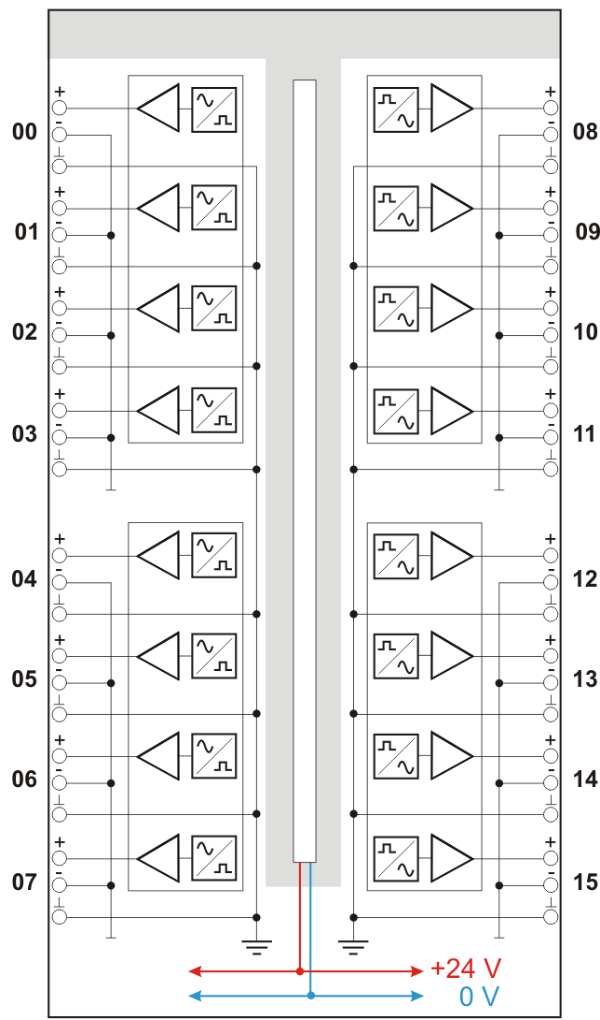

ibaMS16xAO-10V |

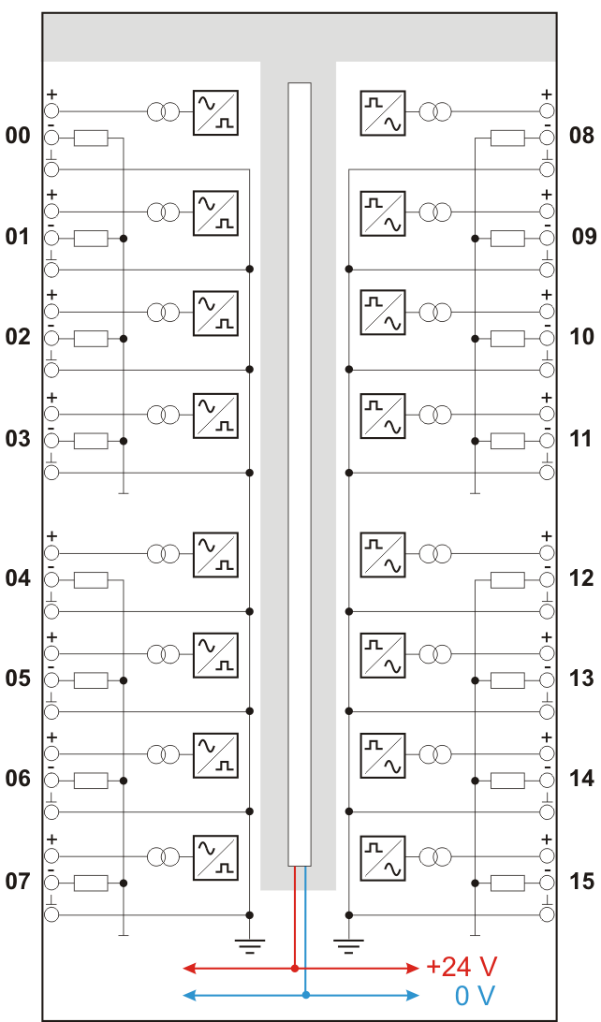

ibaMS16xAO-20mA |
Pin assignment
|
Pin |
Connection |
LED |
Pin |
Connection |
LED |
|
|---|---|---|---|---|---|---|
|
1 |
Analog output 00 + |
L26 |
1 |
Analog output 08 + |
L34 |
|
|
2 |
Analog output 00 − |
2 |
Analog output 08 − |
|||
|
3 |
Analog output 00 |
3 |
Analog output 08 |
|||
|
4 |
Analog output 01 + |
L27 |
4 |
Analog output 09 + |
L35 |
|
|
5 |
Analog output 01 − |
5 |
Analog output 09 − |
|||
|
6 |
Analog output 01 |
6 |
Analog output 09 |
|||
|
7 |
Analog output 02 + |
L28 |
7 |
Analog output 10 + |
L36 |
|
|
8 |
Analog output 02 − |
8 |
Analog output 10 − |
|||
|
9 |
Analog output 02 |
9 |
Analog output 10 |
|||
|
10 |
Analog output 03 + |
L29 |
10 |
Analog output 11 + |
L37 |
|
|
11 |
Analog output 03 − |
11 |
Analog output 11 − |
|||
|
12 |
Analog output 03 |
12 |
Analog output 11 |
|||
|
1 |
Analog output 04 + |
L30 |
1 |
Analog output 12 + |
||
|
2 |
Analog output 04 − |
2 |
Analog output 12 − |
L38 |
||
|
3 |
Analog output 04 |
3 |
Analog output 12 |
|||
|
4 |
Analog output 05 + |
4 |
Analog output 13 + |
|||
|
5 |
Analog output 05 − |
L31 |
5 |
Analog output 13 − |
L39 |
|
|
6 |
Analog output 05 |
6 |
Analog output 13 |
|||
|
7 |
Analog output 06 + |
7 |
Analog output 14 + |
|||
|
8 |
Analog output 06 − |
L32 |
8 |
Analog output 14 − |
L40 |
|
|
9 |
Analog output 06 |
9 |
Analog output 14 |
|||
|
10 |
Analog output 07 + |
10 |
Analog output 15 + |
|||
|
11 |
Analog output 07 − |
L33 |
11 |
Analog output 15 − |
L41 |
|
|
12 |
Analog output 07 |
12 |
Analog output 15 |
|||
Note |
|
|---|---|
 |
The signals must be connected to their own channel. It is not allowed to connect signals to another channel. |
