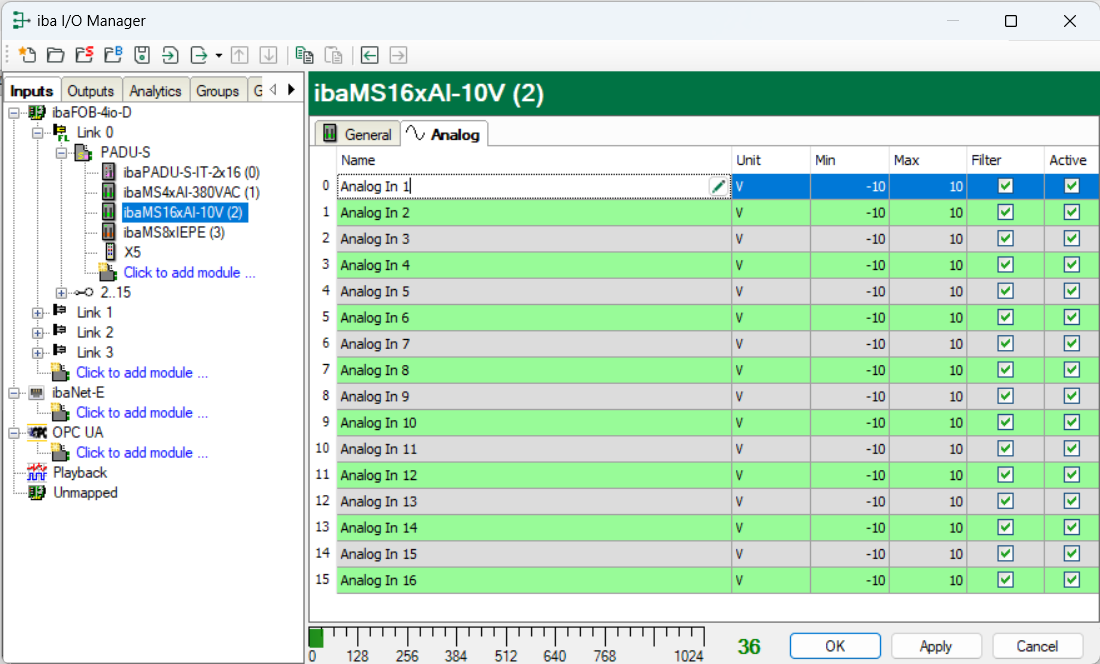

The following settings apply to the Analog tab:

Name

You can enter a signal name and additionally two comments when clicking on the  symbol in the Name field.

Unit

You can enter a unit, the default setting is “V”.

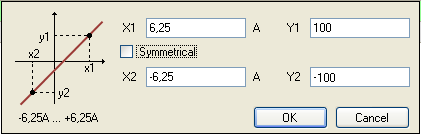

Min

You can define a lower limit for the measuring range. The analog voltage standard level of -10 V is assigned to a physical variable (e.g. -20 °C).

Max

Here, you can define an upper limit for the measuring range. The analog voltage standard level of +10 V is assigned to a physical variable (e.g. +100 °C).

Filters

Here you can activate the anti-aliasing filter: Butterworth 4th order 20 kHz, see Filters.

Active

Enabling/disabling the signal

You can display or hide additional columns using the context menu (right mouse click in the heading line).
