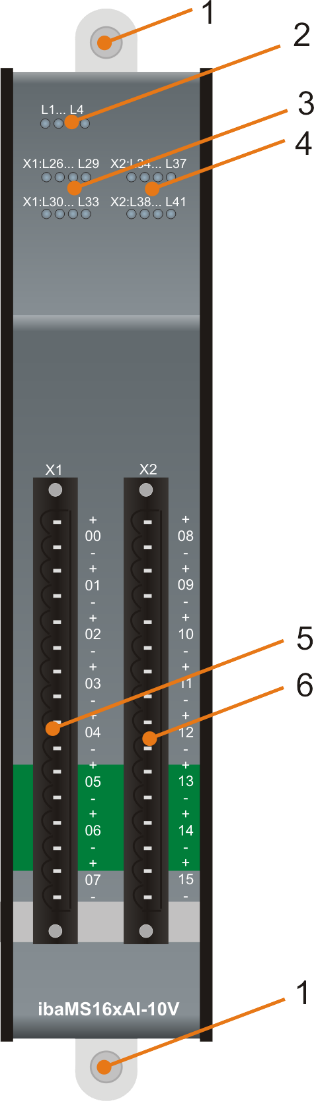

The position and the meaning of LEDs and plugs is similar for all 4 modules.
|
1 |
Fixing screws |
4 |
Status LEDs L34 to L41 of the analog inputs 08 to 15 |
|
2 |
Operating status indicators L1 to L4 |
5 |
Connector X1 for analog inputs 00 to 07 |
|
3 |
Status LEDs L26 to L33 of the analog inputs 00 to 07 |
6 |
Connector X2 for analog inputs 08 to 15 |
