Here, you can connect 16 input signals (0…15), each bipolar and electrically isolated. Each channel is connected by means of two-wire connection.
 |
 |
|
ibaMS16xAI-10V/-10V-HI/-24V/-24V-HI |

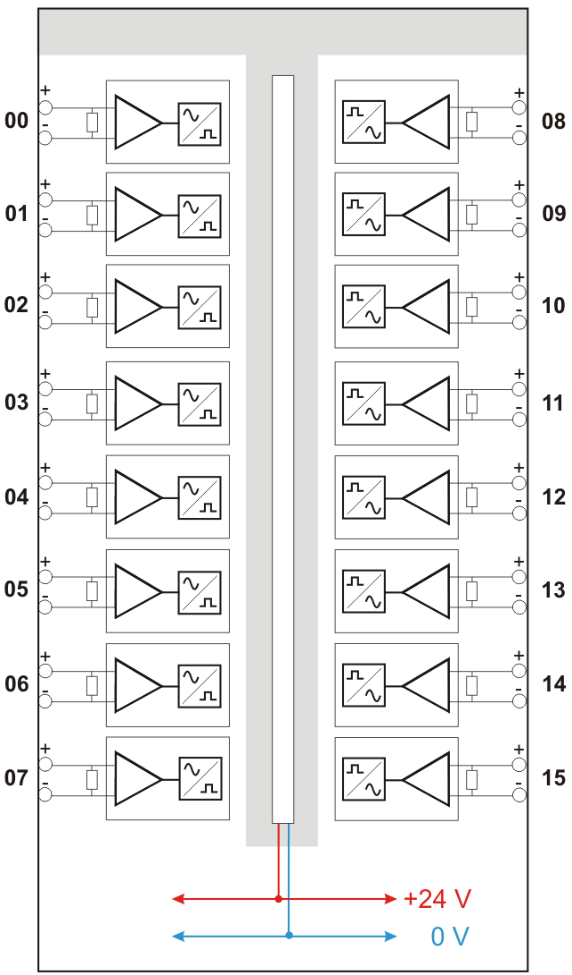

ibaMS16xAI-20mA |
Pin assignment
|
X1 Pin |
Connection |
LED |
X2 Pin |
Connection |
LED |
|
|---|---|---|---|---|---|---|
|
1 |
Analog input 00 + |
L26 |
1 |
Analog input 08 + |
L34 |
|
|
2 |
Analog input 00 − |
2 |
Analog input 08 − |
|||
|
3 |
Analog input 01 + |
L27 |
3 |
Analog input 09 + |
L35 |
|
|
4 |
Analog input 01 − |
4 |
Analog input 09 − |
|||
|
5 |
Analog input 02 + |
L28 |
5 |
Analog input 10 + |
L36 |
|
|
6 |
Analog input 02 − |
6 |
Analog input 10 − |
|||
|
7 |
Analog input 03 + |
L29 |
7 |
Analog input 11 + |
L37 |
|
|
8 |
Analog input 03 − |
8 |
Analog input 11 − |
|||
|
9 |
Analog input 04 + |
L30 |
9 |
Analog input 12 + |
L38 |
|
|
10 |
Analog input 04 − |
10 |
Analog input 12 − |
|||
|
11 |
Analog input 05 + |
L31 |
11 |
Analog input 13 + |
L39 |
|
|
12 |
Analog input 05 − |
12 |
Analog input 13 − |
|||
|
13 |
Analog input 06+ |
L32 |
13 |
Analog input 14 + |
L40 |
|
|
14 |
Analog input 06 − |
14 |
Analog input 14 − |
|||
|
15 |
Analog input 07+ |
L33 |
15 |
Analog input 15 + |
L41 |
|
|
16 |
Analog input 07 − |
16 |
Analog input 15 − |
