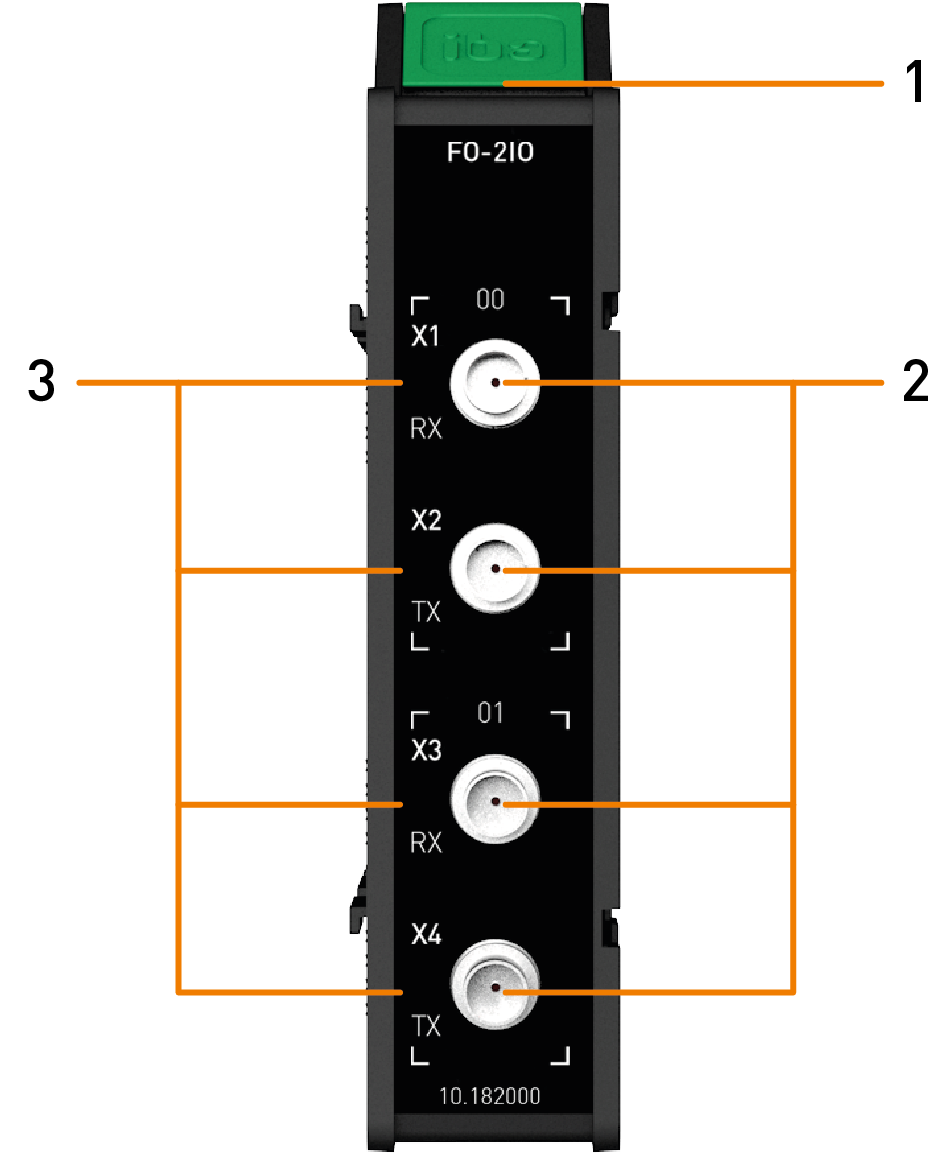

The following illustration shows the front view of the ibaM-FO-2IO device.
|
1 |
Module status indicator |
|
|
2 |
Connectors fiber optic cable |
X1 RX FO input link 0 X2 TX FO output link 0 X3 RX FO input link 1 X4 TX FO output link 1 |
|
3 |
FO connection indicators |
|
