You can add virtual modules in the Analytics tab in the I/O Manager. To do this, click on the link under the Virtual interface and select the Virtual module type.

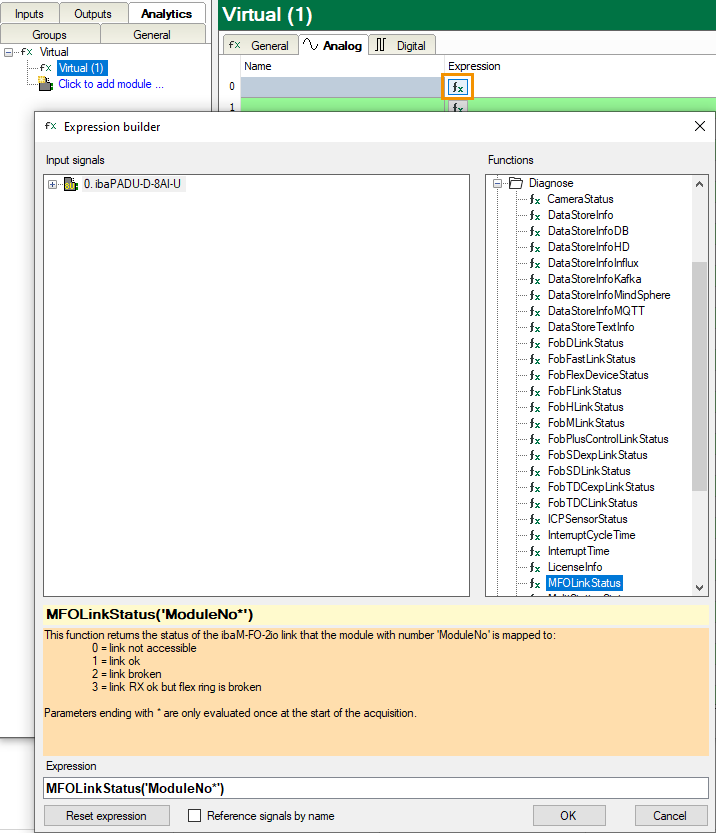

The expression builder can be used to select special virtual functions for diagnostics and monitoring of fiber optic links. These are then available as so-called virtual signals and indicate the current status of the link. These signals can be recorded and further processed in ibaPDA.
Function
MFOLinkStatus('ModuleNo*')
This function returns the status of the fiber optic link of an ibaM-FO-2IO module.
Arguments
|
'ModuleNo* |
Module number of a participant connected to the ibaM-FO-2IO- module |
Results
|
0 |
link not accessibe |
|
1 |
link ok |
|
2 |
link broken |
|
3 |
link RX ok, but flex ring is broken |
Other documentation |
|
|---|---|
 |
Detailed information about the expression editor can be found in the ibaPDA manual. |
