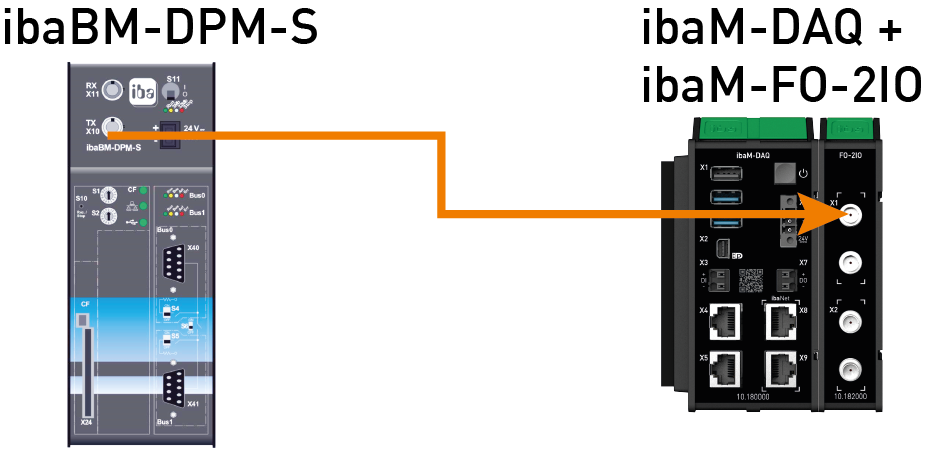

Operation with ibaPDA and 32Mbit protocol
|
ibaNet protocol |
32Mbit |
|
Sampling rate |
1 kHz |
|
Sampling time |
1 ms |
|
Peripheral devices |
ABB AC 800PEC with ibaNet output module SIMATIC TDC with LO5A interface board ibaBM-DPM-S (Profibus monitor), etc. |

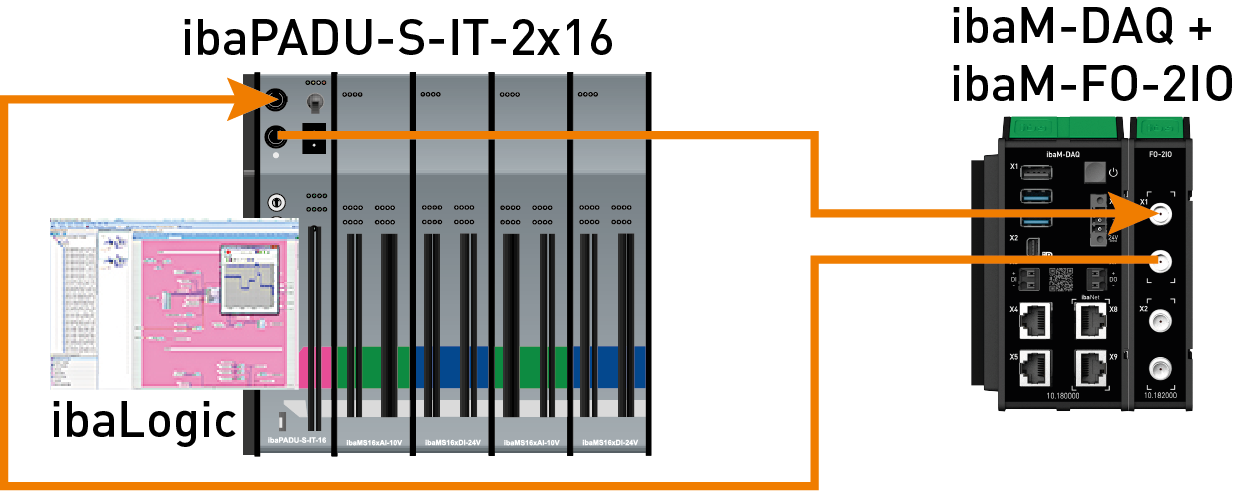

Operation with ibaPDA and ibaPADU-S-IT-2x16 / ibaLogic
|
ibaNet protocol |
32Mbit Flex |
|
Sampling rate |
40 kHz |
|
Sampling time |
25 µs |
|
Peripheral devices |
ibaPADU-S-IT-2x16 with ibaLogic and ibaMS modules |

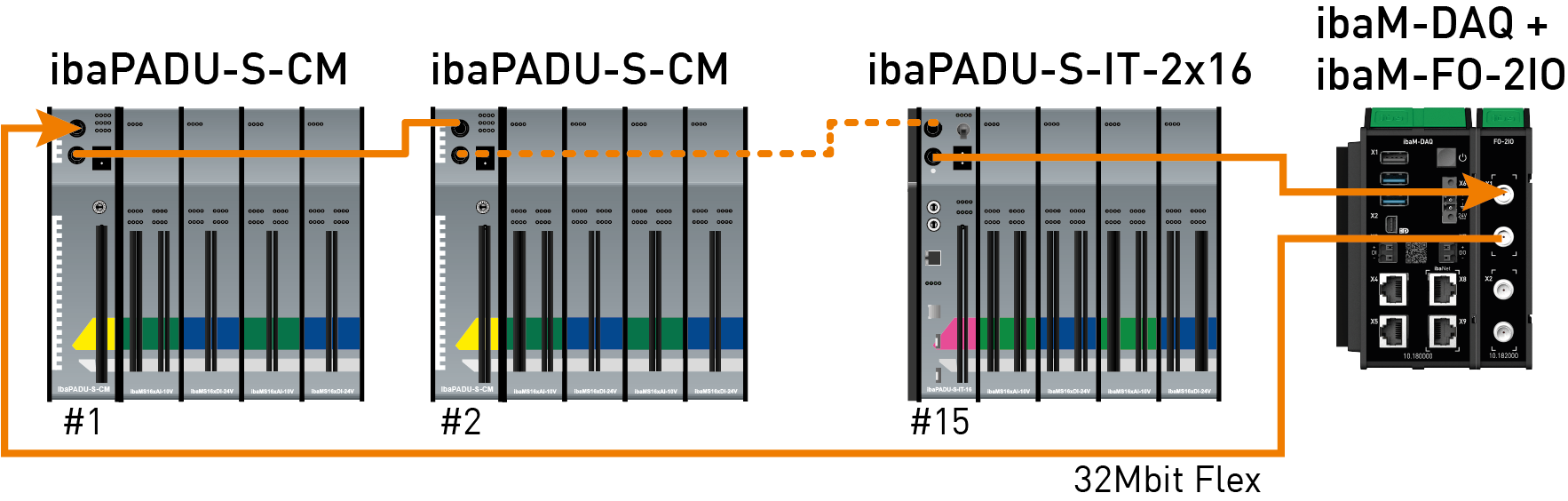

Operation with ibaPDA and 32Mbit Flex protocol
|
ibaNet protocol |
32Mbit Flex |
|
Sampling rate |
up to 100 kHz |
|
Sampling time |
>= 10 µs |
|
Peripheral devices |
ibaPADU-S-IT-2x16 or ibaPADU-S-CM with ibaMS modules, ibaBM-DDCS, ibaBM-SiLink, ibaBM-eCAT, ibaBM-DP, ibaBM-PN, ibaPADU-D-8AI-U/-8AI-I (up to 15 devices can be cascaded in one ring), ibaPADU-4-AI-U, etc. |
