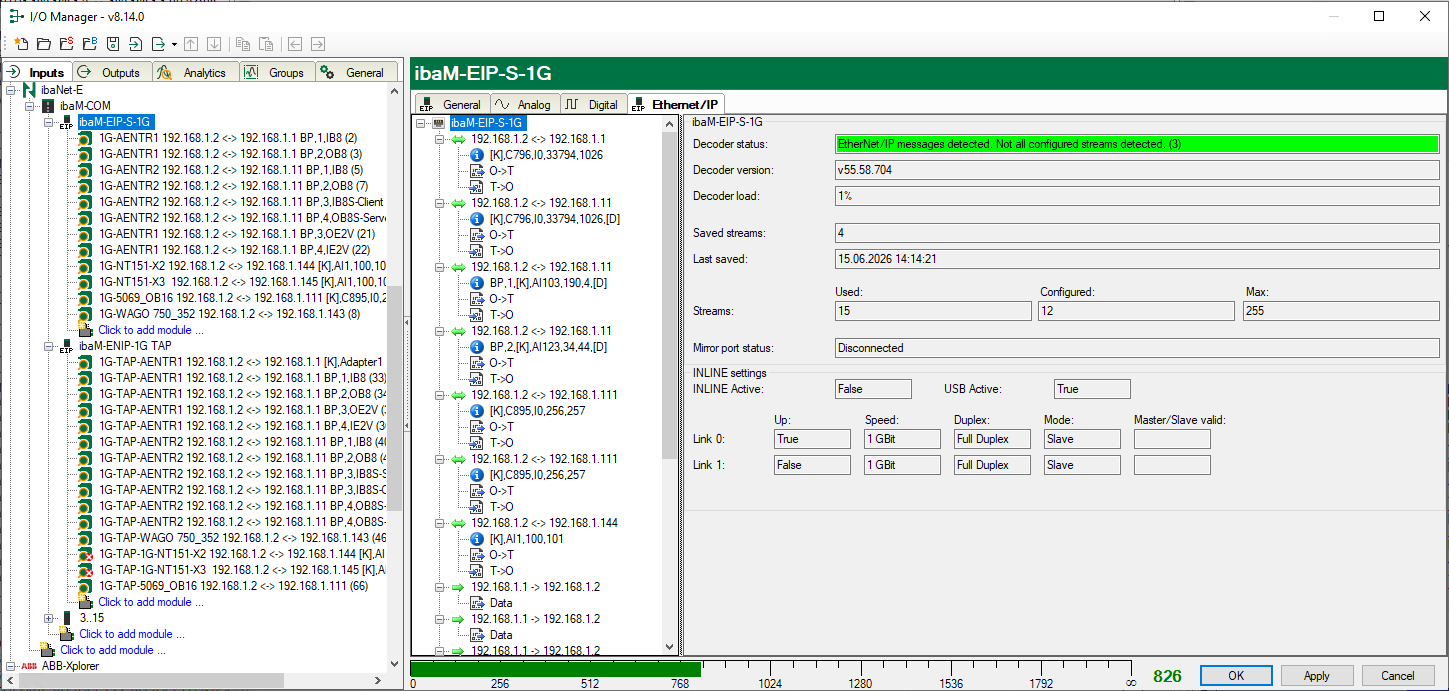

In the Ethernet/IP tab, you can see diagnostic information about the data streams and connections.

Decoder status, version, load

Display of status, version, and utilization (in %) of the decoder

Saved streams, last saved

Number of saved data streams, and the time of the last saving.

Streams used, configured, max.

Number of used, configured and maximum permitted data streams

Mirror port status

Status of the mirror port

INLINE settings

Inline mode setting, properties of link 0/1

Create module

The connection tree on the left lists all detected EtherNet/IP connections. If you mark a connection and click the button <Create module>, a corresponding EtherNet/IP sniffer module is created. The automatically detected configuration, such as originator and target address, connection path, header sizes, is adopted.

The <Create module> button is inactive if a module has already been created for this connection.

The parameters on the right side show different EtherNet/IP detailed information.

Display telegram content

The current contents of the respective telegrams are displayed when you mark a branch in the connection tree.
