The Discovery tab, in the ibaNet-E HP column, shows support for ibaNet-E HP (High Performance).
The requirements for ibaNet-E HP are:
-
ibaPDA v8.13.0 or higher
-
dedicated ibaNet-E network
-
ibaM-DAQ with firmware v01.06.002 or higher
-
max. 10 ibaM-COM devices in a daisy chain (firmware v01.05.001 or higher)
-
Data path MAC in the ibaPDA configuration
Possible displays in the ibaNet-E HP column and their meaning:
|
Display |
Meaning |
|---|---|
|
supported |
The connected device supports ibaNet-E connections with High Performance (ibaNet-E HP). |
|
not supported by network |
The connected device supports ibaNet-E HP. However, the network is not configured in such a way that ibaNet-E HP can be used. |
|
not supported by firmware |
The connected device may support ibaNet-E HP, but the firmware on the device does not support ibaNet-E HP. A firmware update is required to support ibaNet-E HP. |
|
not supported by device |
The device itself does not support ibaNet-E HP. |
|
not supported |
A device was found for which no statement can be made about the capability of ibaNet-E HP. |
Example:

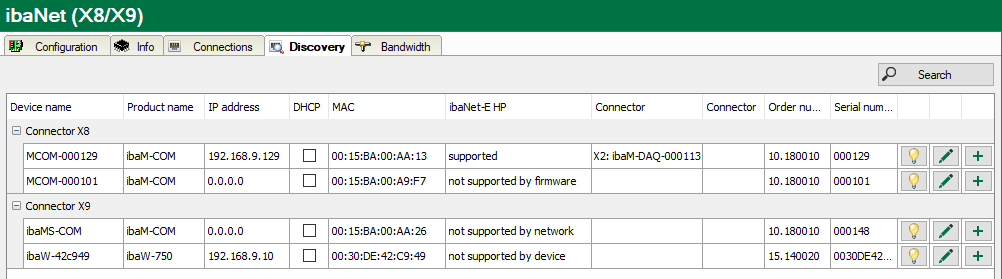

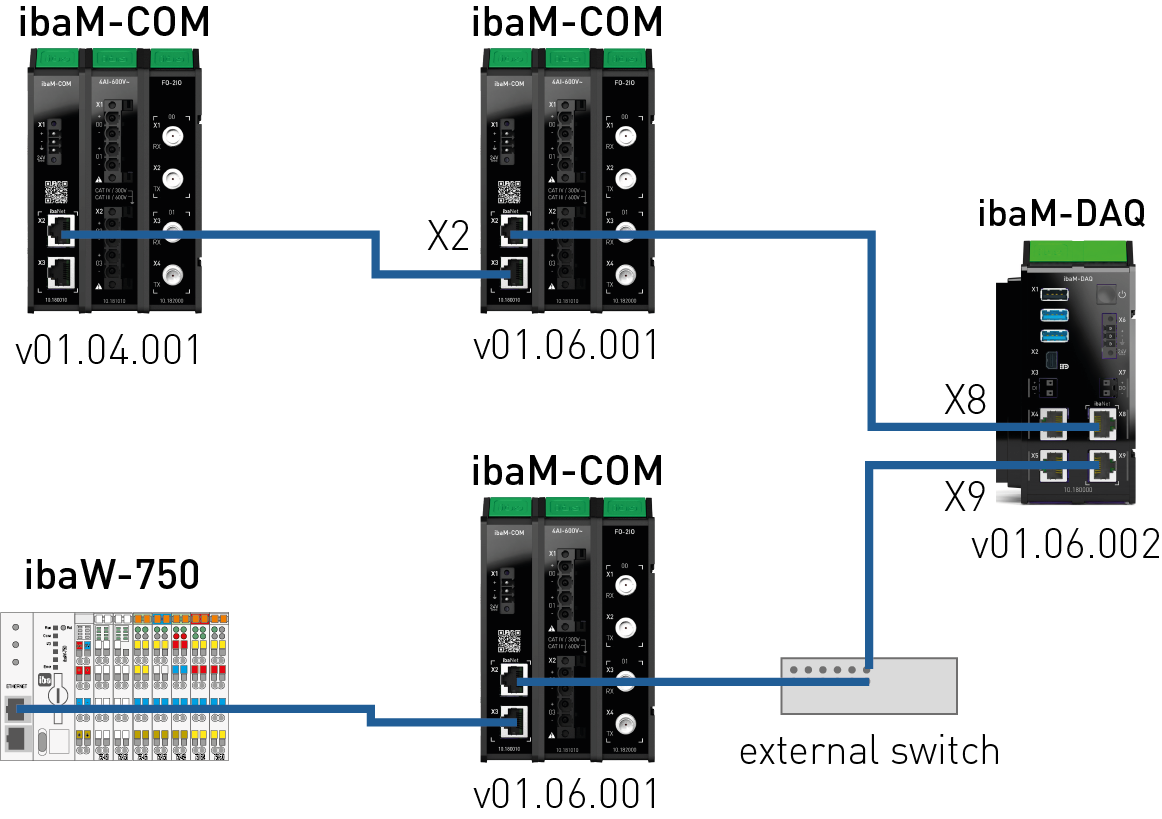

With the following network topology, this display appears in the Discovery tab:
