WoL – WakeMeOnLan-Utility

An initial check of the fully activated Wake-on-LAN function on X4 can be realized e.g. with the freeware program WakeMeOnLan.

1. To do so, download this program from the manufacturer's site and run it.

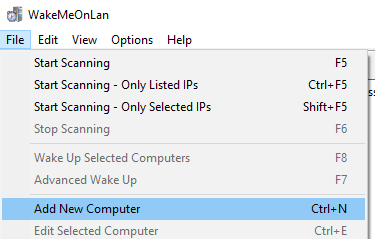

2. Add a new computer:

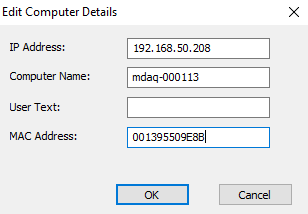

3. Configure the IP address and the MAC address of the network interface X4 and the host name of ibaM-DAQ:









   Note

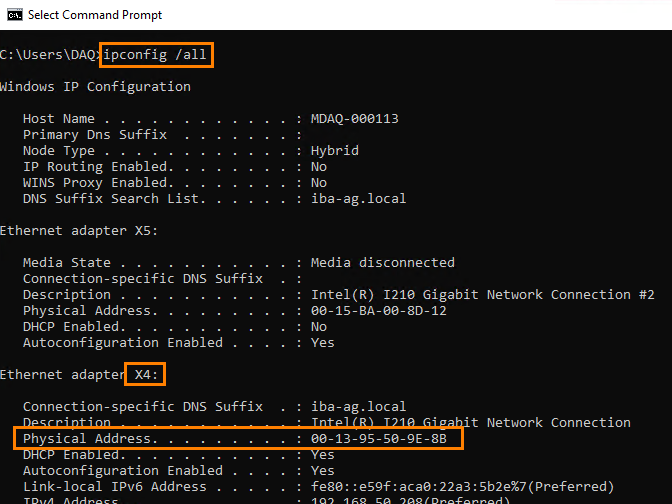

   	The MAC address can be identified by opening a command prompt ("cmd") on the ibaM-DAQ device and entering "ipconfig /all" as command:

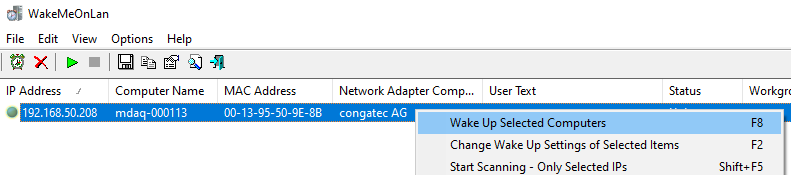

4. In the overview, open the menu with the right mouse button and select "Wake Up":

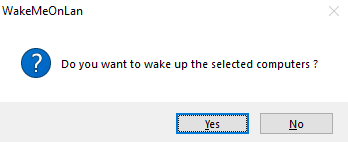

5. After confirmation, the switched off ibaM-DAQ device should boot up.
