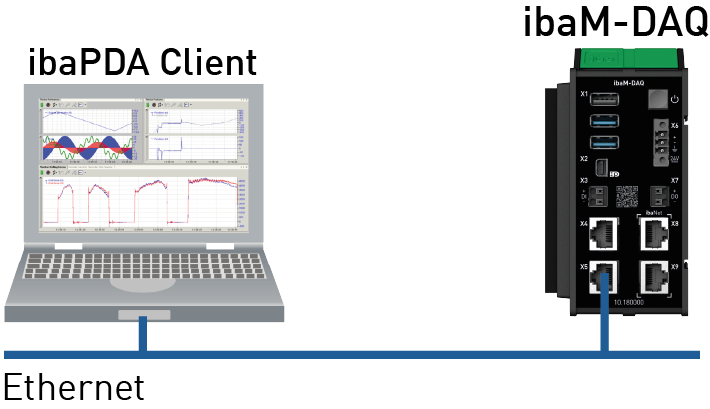

If you are using an external ibaPDA client for the configuration, the ibaPDA client and ibaM-DAQ have to be connected via the network.

Start ibaPDA on the external ibaPDA client and select ibaM-DAQ as ibaPDA server.

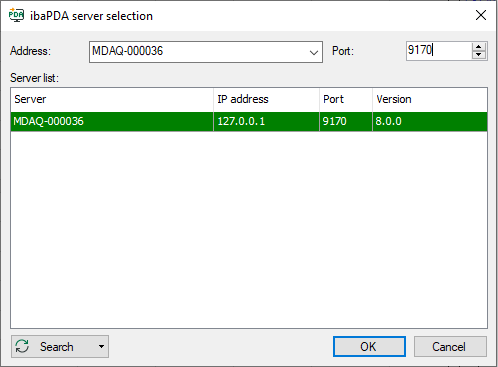

Click the button on the toolbar or click "Select server..." in the Configuration menu.

Address

Enter the name or the IP address of the ibaM-DAQ device in the address bar. The name is composed of MDAQ-<six-digit serial number>. The serial number is found on the device type label. Example: MDAQ-000036.

Port number

The port number is entered automatically.

<Search> button

This button starts and stops the search for active ibaPDA servers in the network. If the ibaPDA client and ibaM-DAQ are located in the same network, the device should be displayed in the server list. The device can be selected either by double-clicking the device or by selecting it and subsequently clicking <OK>.

After the connection has been established, the device is displayed in the ibaPDA signal tree.

For further configuration proceed as described in chapter Configuration in ibaPDA.
