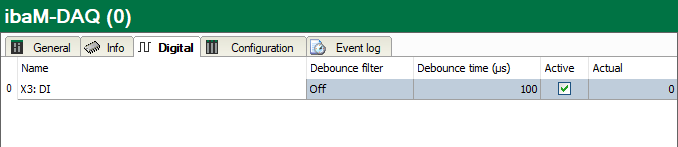

Name

Here you can enter a signal name and additionally two comments when clicking the icon in the Name field.

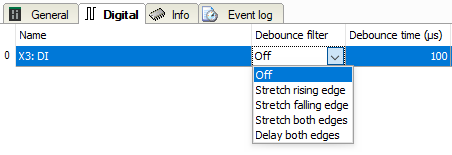

Debounce filter

In the dropdown menu, you can choose the operating mode for the debounce filter. The following settings are available: Off, Stretch rising edge, Stretch falling edge, Stretch both edges, Delay both edges.

Debounce time (μs)

Here you can define the debounce time in μs

Active

Enabling/disabling the signal

Actual

Display of the currently measured value
