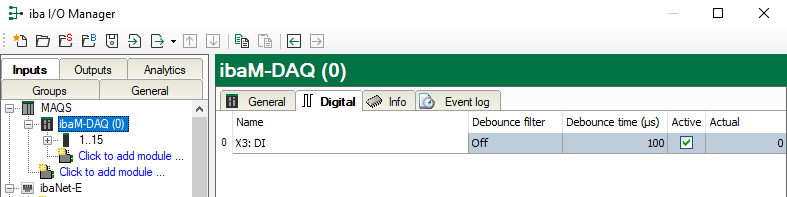

Name

Here you can enter a signal name and additionally two comments when clicking the icon in the Name field.

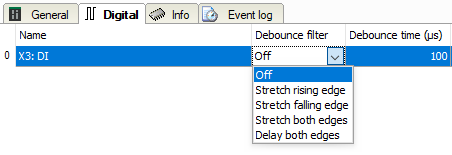

Debounce filter

In the drop-down menu, you can choose the operating mode for the debounce filter. The following settings are available: Off, Stretch rising edge, Stretch falling edge, Stretch both edges, Delay both edges.

Debounce time (μs)

Here you can define the debounce time in μs

Active

Enabling/disabling the signal

Actual

Display of the currently measured value
