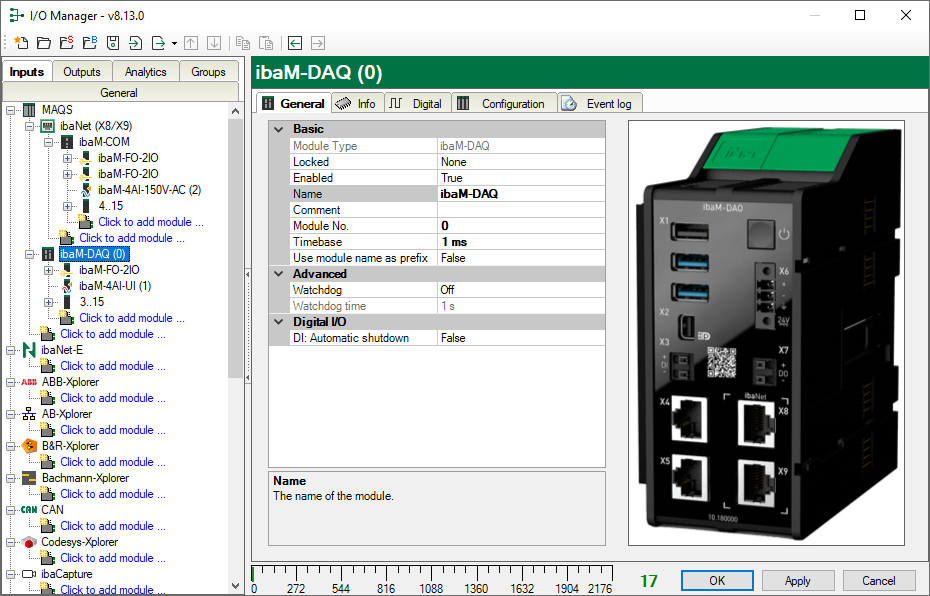

In the General tab, you make the basic settings and settings for the digital input.

Basic

Module Type (information only)

Indicates the type of the current module.

Locked

You can lock a module to avoid unintentional or unauthorized changing of the module settings.

Enabled

Enable the module to record signals.

Name

You can enter a name for the module here.

Comment

You can enter a comment or description of the module here. This will be displayed as a tooltip in the signal tree.

Module No.

This internal reference number of the module determines the order of the modules in the signal tree of ibaPDA client and ibaAnalyzer.

Timebase

All signals of the module are sampled on this timebase.

Use module name as prefix

This option puts the module name in front of the signal names.
Advanced

Watchdog

Enable the watchdog function by selecting a type:

  • I/O bus watchdog

    Watchdog function for attached modules. If an error occurs on the I/O bus that would prevent data acquisition from continuing, this watchdog triggers immediately. This means that data acquisition is stopped, the I/O bus is reset, and data acquisition is then restarted.

    Only one attempt is made to reset the I/O bus. If the error persists after this, the system remains in error mode.

  • System watchdog

    Watchdog function to ensure that the ibaPDA server is running. When this watchdog triggers, the operating system will restart the entire system.

    The system watchdog function includes the I/O bus watchdog function.

Watchdog time

Time delay for the system watchdog function in seconds, minimum 1 s, in increments of 0.5 s.
Digital I/O

DI: Automatic shutdown

TRUE: ibaM-DAQ is shut down automatically if DI is asserted.
